Strymon Timeline Multidimension Delay Effects Unit
Additional Photos:
Product Videos :
YouTube Video
Your Price: $616.00 CDN
or from $65 CDN/mo
Inspiration Machine.
When we decided to create a studio-class stereo delay effects pedal, we knew we must go well beyond what has been done in the past in sound quality, sonic flexibility, hardware design, and processing power. We spent months locked up in the Strymon sound design labs dreaming up the most spacious, lush, creative, and tweakable delay effects ever heard. It was a monumental task relentless study of delays and their nuances, and a continuous pursuit of innovative and musically inspirational sounds. Utilising a ridiculously powerful SHARC DSP, every drop of processing power is harnessed.
Explore Your Creativity.
TimeLine provides you with twelve different delay machines, each with extensive control over sonic character and feel. Tweak to your hearts content and save up to 200 presets of your favourite sounds. Go from crisp and clear, studio-quality digital delays all the way to the saturated and fluctuating sounds of tape delay machines. Get warm and fuzzy analog style repeats all the way to shimmery, sparkling, and crystalline ice delays. Top it all off with full MIDI implementation and a routable, 30-second stereo looper and you're on your way to delay bliss.
Sound Design
- Hand crafted, studio-class delay algorithms deliver meticulous, detailed and nuanced delay experiences
- Twelve delay machines to choose from: Digital, Dual, Pattern, Reverse, Ice, Duck, Swell, Trem, Filter, Lo-fi, dTape, dBucket.
- Seven front-panel tone shaping knobs: Time, Repeats, Mix, Filter, Grit, Mod Speed, Mod Depth
- Additional menu-driven parameters deliver extremely flexible tone shaping options and complete tweakability
- 200 easily accessible and nameable presets, save and recall at the press of a switch
Hardware
- Three rugged metal footswitches for preset selection, effect bypass, looper control, and Tap Tempo
- LED display for preset info, BPM/time readout, and extended parameter control
- Full MIDI implementation allows extended control for those with more complex rigs
- 30-second stereo Looper, routable pre- or post-delay, with MIDI capability.

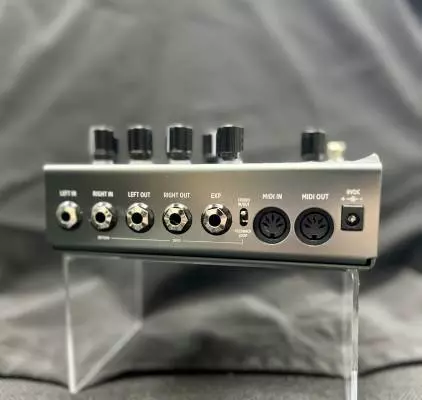

Ins & Outs
- Stereo input and output
- Expression pedal input with selectable control over knob or combination of knobs, savable per preset (also configurable as external tap input)
- MIDI input and output
- Switchable I/O configuration: Stereo Out or Mono with Delay Feedback Loop Insert
Audio Quality
- Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters
- 115dB typical signal to noise
- Analog dry path for a zero latency dry signal that is never converted to digital
- Premium analog front end and output section
- Super high performance DSP in a compact form factor
- 32-bit floating point processing
Additional Information
- True Bypass (electromechanical relay switching)
- Selectable Trails mode with high quality, transparent Analog Buffered Bypass, savable per preset
- +/- 3dB Boost/Cut, savable per preset
- Selectable Tap Subdivision, savable per preset
- Optional Kill Dry mode mutes dry signal, for use in parallel effects loops
- Optional Global Tap Tempo mode
- Included 9V DC power supply (300mA required minimum)
- Rugged and lightweight gunmetal grey anodised aluminium chassis
- Dimensions: 6.75" wide, 5.1" deep
- Crafted with love in the USA
When we decided to create a studio-class stereo delay effects pedal, we knew we must go well beyond what has been done in the past in sound quality, sonic flexibility, hardware design, and processing power. We spent months locked up in the Strymon sound design labs dreaming up the most spacious, lush, creative, and tweakable delay effects ever heard. It was a monumental task relentless study of delays and their nuances, and a continuous pursuit of innovative and musically inspirational sounds. Utilising a ridiculously powerful SHARC DSP, every drop of processing power is harnessed.
Explore Your Creativity.
TimeLine provides you with twelve different delay machines, each with extensive control over sonic character and feel. Tweak to your hearts content and save up to 200 presets of your favourite sounds. Go from crisp and clear, studio-quality digital delays all the way to the saturated and fluctuating sounds of tape delay machines. Get warm and fuzzy analog style repeats all the way to shimmery, sparkling, and crystalline ice delays. Top it all off with full MIDI implementation and a routable, 30-second stereo looper and you're on your way to delay bliss.
Sound Design
- Hand crafted, studio-class delay algorithms deliver meticulous, detailed and nuanced delay experiences
- Twelve delay machines to choose from: Digital, Dual, Pattern, Reverse, Ice, Duck, Swell, Trem, Filter, Lo-fi, dTape, dBucket.
- Seven front-panel tone shaping knobs: Time, Repeats, Mix, Filter, Grit, Mod Speed, Mod Depth
- Additional menu-driven parameters deliver extremely flexible tone shaping options and complete tweakability
- 200 easily accessible and nameable presets, save and recall at the press of a switch
Hardware
- Three rugged metal footswitches for preset selection, effect bypass, looper control, and Tap Tempo
- LED display for preset info, BPM/time readout, and extended parameter control
- Full MIDI implementation allows extended control for those with more complex rigs
- 30-second stereo Looper, routable pre- or post-delay, with MIDI capability.
Ins & Outs
- Stereo input and output
- Expression pedal input with selectable control over knob or combination of knobs, savable per preset (also configurable as external tap input)
- MIDI input and output
- Switchable I/O configuration: Stereo Out or Mono with Delay Feedback Loop Insert
Audio Quality
- Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters
- 115dB typical signal to noise
- Analog dry path for a zero latency dry signal that is never converted to digital
- Premium analog front end and output section
- Super high performance DSP in a compact form factor
- 32-bit floating point processing
Additional Information
- True Bypass (electromechanical relay switching)
- Selectable Trails mode with high quality, transparent Analog Buffered Bypass, savable per preset
- +/- 3dB Boost/Cut, savable per preset
- Selectable Tap Subdivision, savable per preset
- Optional Kill Dry mode mutes dry signal, for use in parallel effects loops
- Optional Global Tap Tempo mode
- Included 9V DC power supply (300mA required minimum)
- Rugged and lightweight gunmetal grey anodised aluminium chassis
- Dimensions: 6.75" wide, 5.1" deep
- Crafted with love in the USA
Media
Youtube video product demo
Q & A
There are currently no questions for this product.
Reviews
3.144.123.24
Mozilla/5.0 AppleWebKit/537.36 (KHTML, like Gecko; compatible; ClaudeBot/1.0; [email protected])
Who needs a Lexicon or Eventide rack unit when you have the TimeLine? 1 of 1 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Toronto (Bloor St.), Ontario
When I first got into real guitar rigs revolving around tube amps and digital delays, I was once told that modern effects don't even come near what the vintage digital rack delays such as the Lexicon PCM81 is capable of. Now, I'll admit that at first, I wanted to hate the TimeLine. However, after playing around with it and tweaking it thoroughly, I've come to realize that what others have told me in the past were nothing but straight-up lies. The Strymon TimeLine is more than capable of producing rackmount quality delays and more - it has very interesting pattern delays (pattern 11 being my personal favourite for the circular delays), and emulates tape echoes very well. On TOP of that, it also has a very nice Ice echo algorithm that I use in conjunction with the Strymon BigSky's Shimmer reverb. Don't listen to anyone else who will tell you that it's not worth buying the Strymon TimeLine. Once you have a chance to try out what the Strymon TimeLine is capable of, it's going to be extremely difficult to go back to rackmount gear for delays. The TimeLine, in my experience, has eaten Lexicon, Eventide AND Boss for breakfast, lunch and dinner in terms of reliability, flexibility and overall tone.
Posted by William Song on Sep 18, 2024
The original flagship 1 of 1 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Victoria, British Columbia
This is the best compact delay pedal available—still! I've been using one as my main delay for over a decade, and nothing has been able to replace it yet.
The sounds are amazing and rich, there are tons of options but they are laid out in a logical way, and the flexibility and programmability for live work is there.
I own a ton of old rack mounts, classic analog delays, tape delays, you name it... And for every day use, this pedal is the secret sauce for my sound. It eats the BOSS DD-500 for breakfast, and I really love BOSS.
If you're on the fence, just get it.
Posted by Josh S on Aug 10, 2023
You won?t be disappointed 4 of 4 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Calgary Chinook, Alberta
Even an ear that is not well trained will appreciate the absolutely endless options in this pedal.
A lot of criticism surrounds strymon for their prices and I’d agree I think the price can come down honestly.
That being said, this is the single best delay multi pedal that exists. I’ve played and researched many.
Many people said the boss dd 500 was just as good but that’s not true. This has more perimeters per setting and possibilities. More than that the quality of tone is unmatched.
Do yourself a favor, save up and get one.
Posted by Matthew on Oct 14, 2019
Wonderful $700+ pedal. For that price the customer deserves a 28 page manual in the box. 5 of 5 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Québec, Quebec
When I first got this home I was a bit daunted by the scope of options. It will take a few hours to get on top of communications between this and my DAW, but happily, the layout is logical and the ONLINE manual is thorough. M When I first got this home I was a bit daunted by the scope of options. It will take a few hours to get on top of communications between this and my DAW, but happily, the layout is logical and the online manual is thorough. My one peeve is when you pay this much for a peddle, to include 28 pages of instructions should be automatic.
Posted by Nick on Mar 3, 2019
Hard to beat 2 of 2 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Victoria, British Columbia
Strymon quality with delays for days. You can do so much with this pedal. Add it to your pedal board, you won't be dissappointed.
Posted by Stevie on Jan 13, 2017
Have to Try! 2 of 2 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store St. John's, Newfoundland and Labrador
Strymon has just been breaking major ground with their pedals. This one is no exception. Not only does it do everything and beyond, it also maintains your analog signal like no other. If you can afford them, you can't go wrong with Strymon!
Posted by Retro on Nov 9, 2015
Nothing Comes Close 3 of 3 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Calgary Royal Vista, Alberta
Hands down the best delay pedal I've ever played. Warm, articulate, diverse. Does everything and does it better than anyone.
Posted by Palmero on Apr 5, 2014
