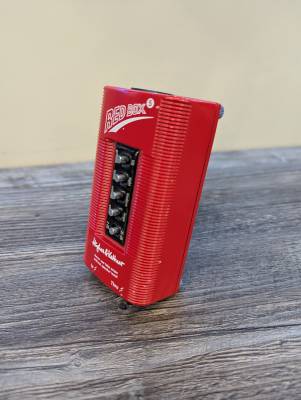

Hughes & Kettner Red Box 5 D.I. Simulator w/Controls

Since its late-'80s release, the original Hughes & Kettner Red Box has been the standard tool for capturing the sound of guitar amps without using microphones. The Red Box 5 is the latest version of the award winning industry-standard DI box with speaker simulation, now with new filtering options for small/large housings, modern/vintage speakers, and loose/tight response of the cabinet. It delivers unvarying sound quality at every gig or recording session, putting an end to crosstalk with other instruments or hassles of experimenting with microphone placement.

Thanks to this clear, direct sound, Red Box 5 will endear you to every seasoned PA tech and studio engineer. The Red Box does not sound like a miced cab, it sounds likle the cab itself! And the secret behind many of today's best sounding guitar tracks is that they are double-tracked with a microphone and a Red Box, or that the pure Red Box signal is run through microphone- and room-emulating software plug-ins. This enables a perfect mix of ambience and ultra-direct attack.

Connections

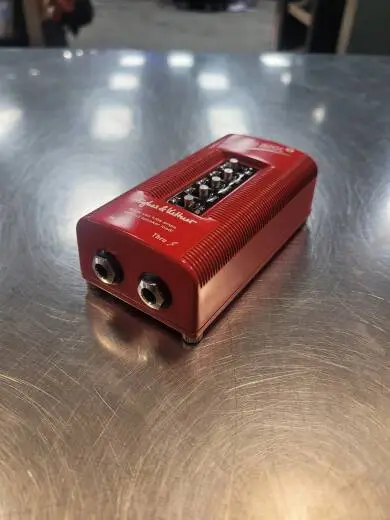

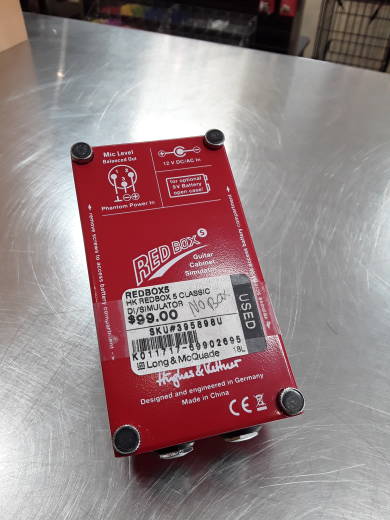

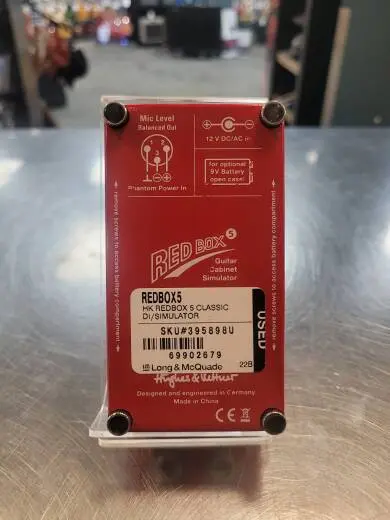

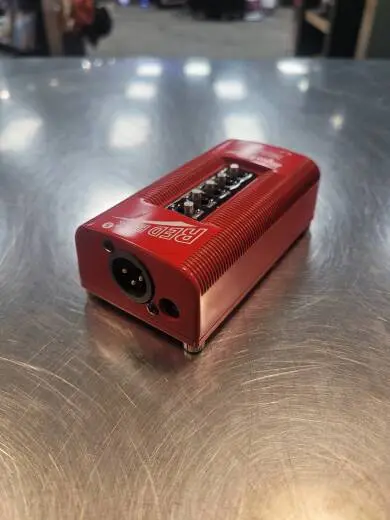

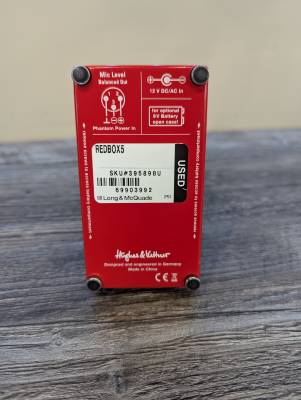

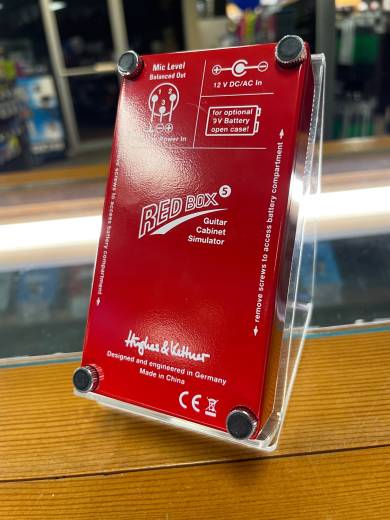

The RED BOX 5 provides one unbalanced 1/4" (6.3 mm) jack input (IN) for line and speaker signals and two different outputs: One unbalanced 1/4" (6.3 mm) jack (THRU) lets you patch through the unprocessed signal to the cabinet. One balanced XLR connected lets you feed the processed signal to a mixing console. Note that some mixing consoles do not provide phantom power. In that case, the RED BOX 5 is ready for an optional power supply and comes with a compartment accommodating a 9 V battery.

Control features

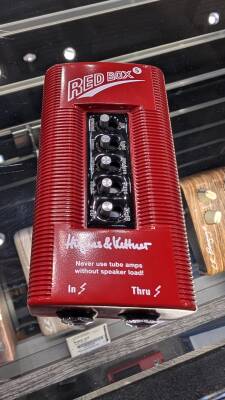

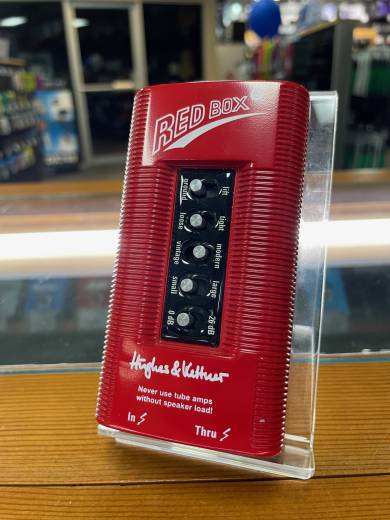

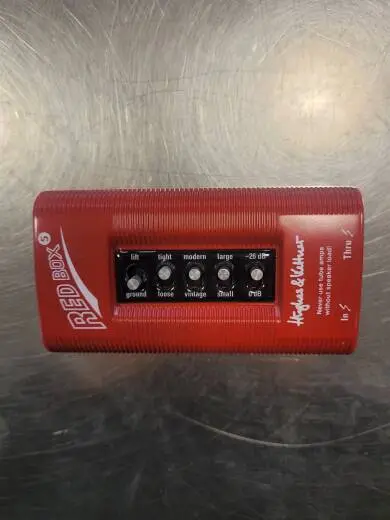

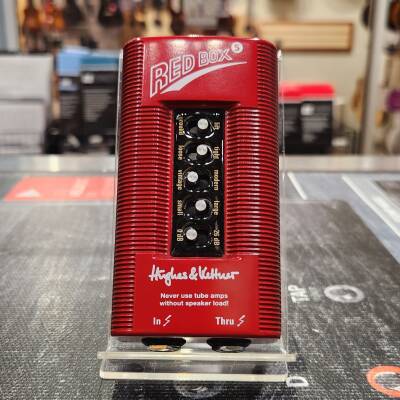

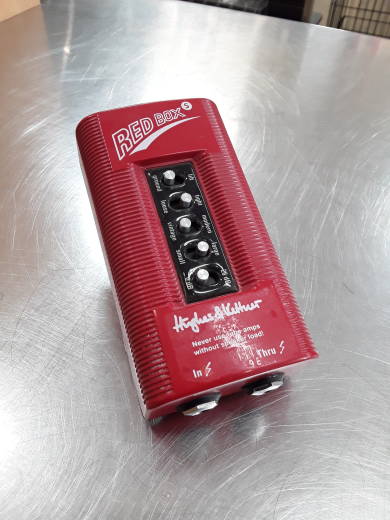

The RED BOX 5 features the usual Ground Lift switch and Pad switch to adjust input gain. There are also three sliding switches that provide some unusual sound-shaping filters. Providing rather more subtle than dramatic EQ, they help you conjure the sound of your favorite cab. These filters action is most evident in slightly overdriven and heavily distorted lead sounds.

Loose/Tight: Tight gives you a taut, dense tone thats great for throatier riffs. Loose conjures an airier, softer sound.

Vintage/Modern: The Modern voicing gives you the bark and honk of modern speakers, while Vintage yields a warmer, woollier tone associated with old-school cabs.

Small/Large: Small captures the compressed sound of a small housing; Large gives the you greater girth and added bass of a sizable cabinet.

Ground/Lift: This switch severs the RED BOX 5s ground circuit to eliminate humming or buzzing caused by ground loops. As the name suggests, Lift" severs the connection.

0 dB / -26 dB: Your choice of input gain level can make or break your sound. If its too high, you'll get undesirable distortion. If its too low, the noise floor can degrade your signal. As a rule of thumb, go with -26 dB for speaker signals and 0 dB for line signals. There are some instances where 0 dB is the more sensible choice for speaker signals: The amps master volume level determines the speakers output level directly, so of course the signal level drops markedly when you turn the master volume well down, for example, when you want to record at home at moderate volume.
