Focusrite ISA828 MkII 8-Channel Mic Preamp

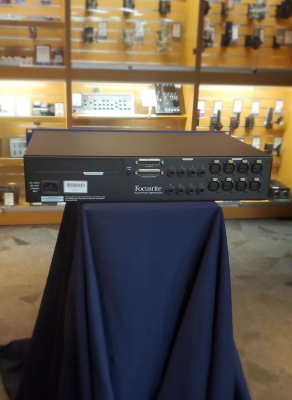

Additional Photos:
Up to 60dB of gain is available, with a further +20dB of continuously variable trim, providing a huge 80dB gain range. The high-pass filter has a fixed 75Hz frequency and 18dB / octave roll-off for minimising rumble, stand-borne noise and other low-frequency sounds. The ISA 828 MkII also features per-channel, six-segment LED meters, and switchable rear-panel insert points, which allow the use of inline processors such as compressors or EQs.
Dedicated connectors for mic and line-level inputs allow all sources to be connected simultaneously, making ISA 828 MkII perfect for permanent installation in a rack. A switching power supply allows for efficient, cool operation, without sacrificing sound quality or performance, and increasing reliability over its predecessor. The optional ISA ADN8 analogue-to-digital expansion card provides eight Dante, ADAT and AES3 outputs at sampling rates of up to 24-bit / 192kHz.
Features
• Optional A-D card with up to 192kHz, 24-bit sampling offers high-quality digital audio conversion to Dante, ADAT and AES3• Classic ISA mic preamp design featuring Lundahl LL1538 input transformer
• Switching power supply design allows for efficient and cool operation
• Front-panel instrument inputs to first four channels
• Line inputs with dedicated input connectors and front-panel select switch
• Switchable input impedance including classic ISA 110 setting
• High-pass filter with fixed 75Hz frequency and 18dB/octave roll-off
• Switchable insert points when used with A-D card
• Per-channel six-segment LED peak-level meters
Specifications
- 8 x XLR Mic Inputs- 8 x 1/4" Line Inputs
- 4 x 1/4" Instrument Inputs
- 1 x DB25 / ADC Inputs
- 1 x DB25 / Analog Outputs
- High Pass Filter: Fixed at 75 Hz, 18 dB/Octave Rolloff
- Meters: 6-Segment LED Peak-Level Meters per Channel
- Gain Range: 80 dB
- Dimensions: 3.5 x 19.0 x 12.8" / 8.8 x 49.2 x 32.5 cm
- Weight: 15.6 lb / 7.1 kg
In the Box
- ISA 828 MkII unit- AC power lead
- Safety information cut sheet
