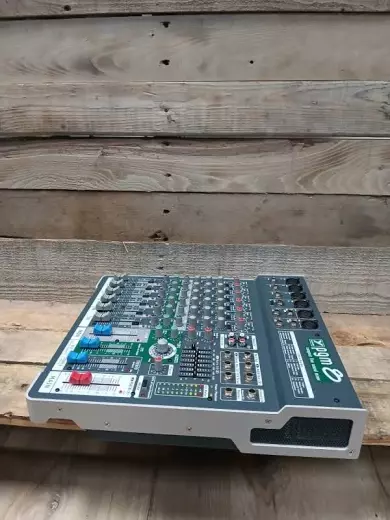

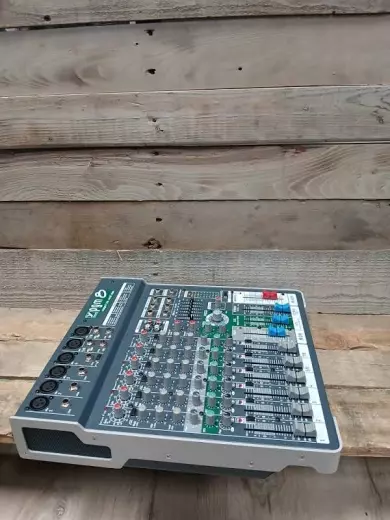

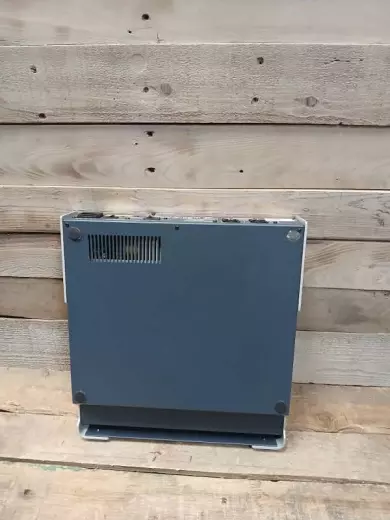

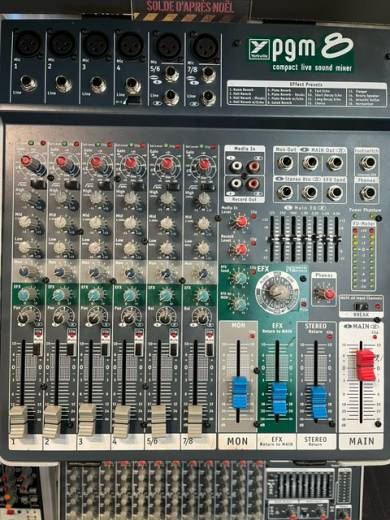

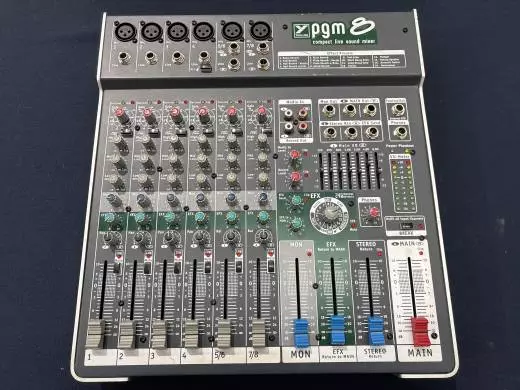

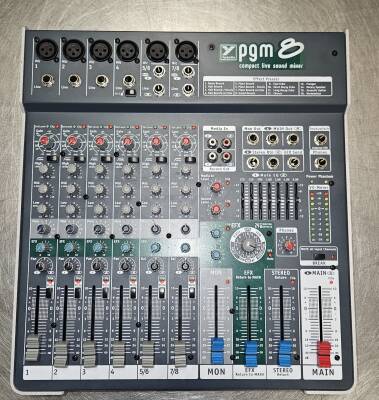

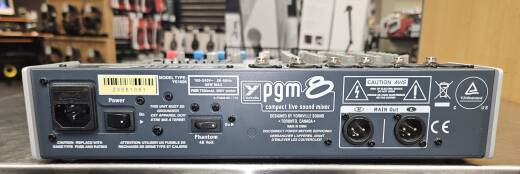

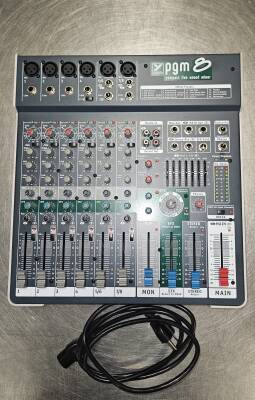

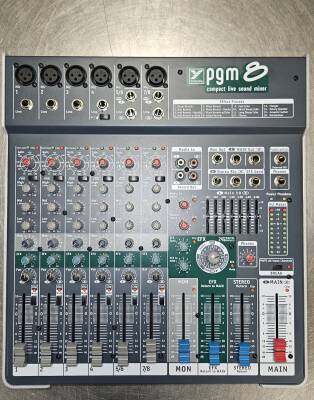

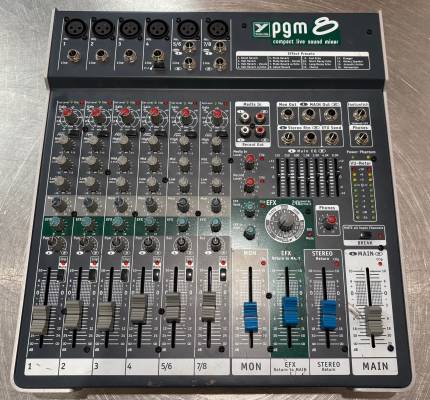

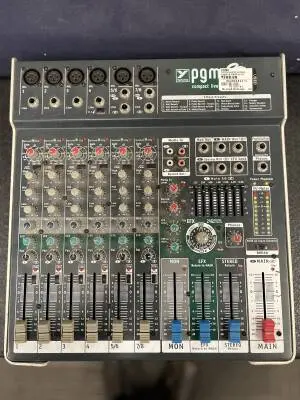

Yorkville Sound 8-Channel Passive Mixer
Additional Photos:
Features:
• Four Mono Input Channels with XLR & -inch TRS inputs
• Channel 4 Mono Input has a Hi-Z input switch
• Two Additional stereo line input channels (5/6 and 7/8)
• Additional XLR mono input per stereo channel for maximum 6 Mic inputs
• Input gain level control with Non-defeatable soft multi-slope compressor on every input
• 3-band EQ, High Pass Filter, Monitor send , Effect Send, Clip LED, Mute Switch and Pan control per Channel
• 60mm Faders Throughout
• Global 48 volt Phantom Power
• 7-band stereo graphic EQ on Main Outs
• Stereo RCA Record Outputs with Level Control
• BREAK Switch (mutes all input channels)
• Stereo RCA Media Input Jacks with Rotary Level Control (returns pre equalizer, post BREAK switch).
• Monitor TRS Output

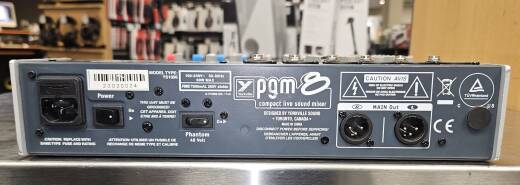

• Main stereo TRS phone and XLR outputs
• Sixteen 24bit digital audio effects
• Effects TRS output jack
• Effects defeat footswitch jack
• Effects return to Main and Monitor
• Stereo Return TRS jacks with fader
• Headphone Level Control
• Stereo Headphone Output Jack (Signal strong enough to drive 8-ohm speakers)
• Dual 10-segment LED Output Meter
• IEC removable line cord receptacle (No Adaptors)

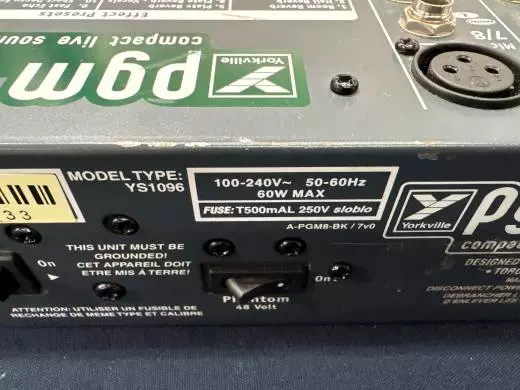

• Universal Power Supply from 90VAC to 264VAC at either 50Hz or 60Hz.
Specifications
• Number of Channels - 8
• Mono Channel EQ - 3-band
• Pan/Balance Controls - 4/2
• Channel Overload Protection - Yes
• Inputs - XLR (bal)6, 1/4" 6. RCA 1 stereo pair
• Phantom Power - 48 volt + LED indicator
• VU Meters - 2 x 10 Segment LEDs
• Headphone Monitor Features - yes
• Internal Effects - 24 bit stereo 16 effects
• Effects Sends - 2 (1 internal, 1 external)
• Effects Returns - Main and Monitor
• Reverb / Effects Footswitch - yes
• Record Outputs - 1 stereo pair
• Signal to Noise Ratio (dB) - Greater Than -100dB
• Frequency Response (all EQ Flat,+/-2dB)- 20Hz-20KHz
• THD (Main out w/ -10dB input)- Less Than 0.05%
• Typical crosstalk -1 kHz (dB) - Greater Than -60dB
• CMRR @ 60Hz (min/typ) - 55dB/65dB
• Power Consumption (typ/max) - 26VA (typical)
• Chassis Construction - Steel
• Dimensions (DWH, inches)- 14.2 x 12.8 x 2.8
• Dimensions (DWH, cm) - 36 x 32.5 x 7
• Weight (lbs/kg) - 8.5/3.8
