Drawmer 1970 Dual FET Compressor and Preamplifier
Additional Photos:

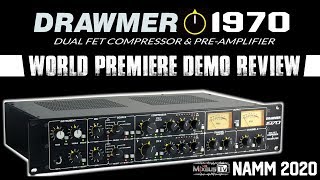

Product Videos :
The 1970 use the latest THAT Corporation technology in the 2 mic preamps to provide ultra clean, transparent and precise recordings that can be processed at a later stage using your favourite warming method, be it saturation, valve, transformer or tape. In addition each channel is capable of 66dB of gain, with switchable mic impedance for accurate mic matching to bring out the best from any microphone used. Phantom power, phase reverse and a high pass filter are also included.
From tracking instruments via the dedicated D.I. input, to recording vocals via the ultra clean mic pre's, recording a guitar cabinet with two microphones, or a singer playing guitar, or even stereo buss compression using the comprehensive linking and mix facilities, the 1970 is the perfect versatile tool for any studio or live event.
Super Clean Bypass
If desired the 1970 can provide an ultra clean microphone signal via the THAT Corporation mic amplifiers by utilising the fully balanced hard-wire bypass which connects the input source directly to the output without passing through the compressor FET's, the mix and gain controls at all.
Creative Mic Impedance
You may have encountered the general rule that the impedance of the preamp input should be 10X that of the mic to get an input impedance that is appropriate for the mic and to avoid loading the source, however, it is less known that mismatching can create some interesting tonal differences that can be used more creatively. The 1970 has 3 settings per mic input: 200, 600 and 2400 Ohms, making it easy for you to explore the various tones. The result will depend on the microphone used, as the tonal changes will be obvious with some mic's but others will hardly alter, and on the material you're working with.
Mix Control - Pricisely Control the Amount of Compression Applied!
Incorporated into each channel of the 1970 are the 'Mix' Controls. They act like a 'parallel compression' effect that mixes the Wet (compressed) and Dry (original) signals to provide a simple and exact way of controlling the amount of compression used - all with the turn of a single knob.
Features
• Two ultra clean mic pre's with 66dB of gain with phantom power and switchable mic impedance for accurate mic matching.
• Separate Line & Mic input XLR's
• A pro quality instrument DI input with low and high EQ.
• Can be used as 2 mono tracking compressors or 1 stereo buss compressor (avoiding image shifting) via the class leading comprehensive linking facilities.
• FETs can be bypassed altogether to provide ultra clean outputs.
• Standard controls such as Threshold, Ratio, Attack & Release, with 8 LED GR Metering on each band.
• Rear panel Side-chain insert points provide even further control.
• 'Big' and 'Air' Modes Help to preserve the very deep lows and Enhance the sparkling highs.
• Variable Wet/Dry Mix plus Output Gain knobs on both channels give a 'Parallel Compression' function without the need for external mixing devices, providing complete and effortless control over the amount of compression used and output levels.
• Two backlit Analogue V.U. Meters with Switchable +10dB Rescale Mode. Time delay relays on outputs for clean power up/down.
• Internal Low Hum Toroidal Linear Power Supply with Voltage Selector Switch.
Specifications
INPUT
Input Impedance: 20k Ohms or greater
Maximum Input Level: +21dBu
OUTPUT
Output Impedance: 100 Ohms
Maximum Output Level: +21dBu into 10k Ohms Load
FREQUENCY RESPONSE
20Hz to 20kHz +/-0.5dB
CROSSTALK < -75dB @ 1kHz
NOISE AT UNITY GAIN
20Hz - 20kHz: >93dB
% DISTORTION (THD & NOISE) @ 1kHz
0dB (ref +4): 0.01%
10dB (ref +4): 0.01%
MIC EIN: -130dB
POWER REQUIREMENTS
230Volt or 115V at 50-60hZ, 630VA
FUSE RATING
T250mA for 230Volt,
T500mA for 115Volt
Conforming to IEC 127-2
FUSE TYPE
20mm x 5mm, Class 3 Timed-Blo, 250Volt working
CASE SIZE
482mm x 88mm x 270mm (19" x 3.5" x 10.6")
WEIGHT
4.2 Kg (9.3 lb)
