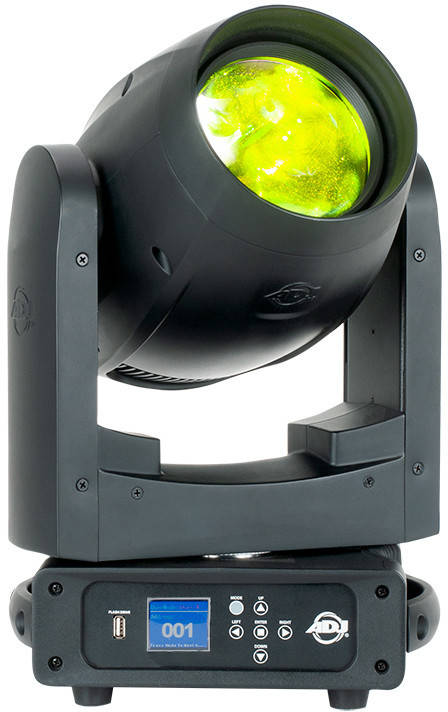

American DJ Focus Beam LED 80W Moving Head
Additional Photos:
Product Videos :
There are a variety of control options on the Focus Beam LED such as: DMX & RDM protocol, a variety of dimming modes, fine pan and fine tilt options, and adjustable gamma and LED refresh rate settings. There is an on-board function display with 5 touch buttons making it easy to dial in custom settings.
The Focus Beam LED offers 13 dichroic colors plus white, and has 15 fixed GOBOs plus open and a GOBO shake effect.
There is a convenient USB port on the rear panel used to update firmware. The fixture has locking Seetronic In/Out connections to daisy chain power, and 5-pin DMX In/Out to link data. The fixture is compact and lightweight suitable for fixed installations or temporary, mobile event applications.
Features
• Control Protocol: DMX & RDM
• DMX Modes: 2 (16 & 18)
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• Dim Speed control (0.1~10 Seconds)
• Dimming: 0 - 100%
• Strobe & pulse control
• Motorized Focus
• Linear Frost 0-100% (Wash effect)
• 2 Prisms: 6 & 8 Facet, Indexable and Rotatable
• USB firmware update port
• Adjustable LED Refresh Rates (900~25k Hz)
• Adjustable Gamma Settings (1.0-2.8)
• With Wired Digital Communication Network
• Display: Touch display with 5-button touch menu
Included Accessories
• (2) Omega Brackets
• (1) Seetronic Power Locking Power Cable
Specifications
Light Source
80W Cool White LED Engine
2.5⁰ Beam Angle
Colour Temperature: 7400K
50,000 Hour Average LED Life
Colour Wheel: 13 dichroic colours + white
GOBO Wheel
Metal wheel with 15 fixed GOBOs + Open
GOBO shake effect
Prism Wheel
Prism Wheel 1: Rotatable 8-facet Circular
Prism Wheel 2: Rotatable 6-facet Linear
Prism Indexing with overlay feature
Control
Control Modes: DMX512, RDM & Stand Alone Internal Programs
2 DMX Channel Modes: 16 & 18 channels
16-Bit Pan, Tilt & Dimmer control
Connections
DMX Connections: 5-pin Locking XLR In & Out
Power Connections: Seetronic Locking Power In & Out
Pan/Tilt
Pan & Pan Fine: 630 degrees
Tilt & Tilt Fine: 270 degrees
Electrical
Multi-voltage operation: AC 100-240V, 50-60Hz (Auto Sensing)
Maximum Power Consumption: 136W @ 120V
Daisy chain: 15 units @ 120V; 30 units @ 230V
Dimensions & Weight
Dimensions (LxWxH): 10.96" x 7.55" x 17.61" / 278x191x447mm
Weight: 27 lbs. (12.25 kg)
