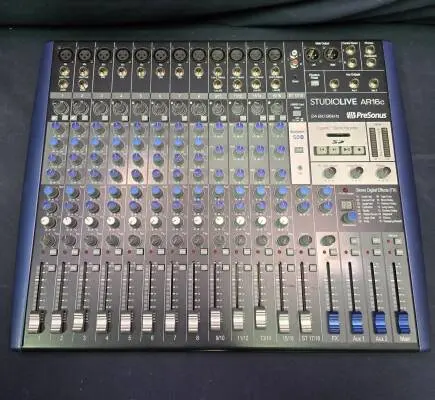

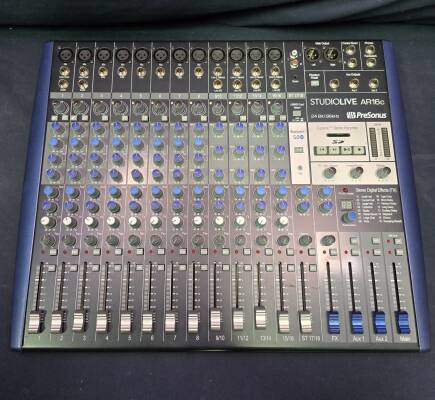

PreSonus StudioLive AR16c 16-Channel USB Hybrid Performance/Recording Mixer
Additional Photos:
Product Videos :
YouTube Video
YouTube Video
Sale Price: $839.99 CDN
Original Price: $999.99 CDN
or from $89 CDN/mo
Portable. Affordable. Recordable.
StudioLive AR16c: 16 channel USB-C™ Compatible Audio Interface / Analog Mixer / Stereo SD RecorderAudio recording made easy.
Don't let the classic analog mixer design fool you- the StudioLive® AR16c was built to record. With a pristine analog front-end, 12 high-gain XMAX mic preamps, and an 18x4 24-bit, 96 kHz, USB-C compatible USB 2.0 audio interface, its hybrid design makes it simple to record studio productions and mix live shows from a single intuitive console. Add in a musical 3-band analog EQ, mic/line boost for low-level vintage synths and broadcast microphones, all-new digital effects with rich reverbs and lush delays, Bluetooth® connectivity, and a stereo SD recorder, and you have a mixing and recording powerhouse that fulfills the needs of both modern musicians and content creators.
The channel that does it all even Bluetooth connectivity!
The unique Super Channel can handle four stereo sources at once and makes it easy to integrate consumer devices into your studio workflow. Connect a turntable to the RCA inputs, use the 1/8-inch stereo input to plug-in your smartphone, or forget the cable and connect it via Bluetooth wireless technology. You can also toggle between a stereo playback stream from your computer and playback from the onboard SD recorder, making rehearsal a snap.
A complete recording solution for studio and stage.
The StudioLive AR16c audio interface and analog mixer is tightly integrated with state-of-the-art recording software to help you realize your creative vision. Record multitrack live performances with one click thanks to PreSonus' Capture™ live-recording software. Create complete studio productions with our award-winning Studio One® Artist DAW. With two professional recording applications included with your StudioLive AR16c, you're ready to record right out of the box.
Stereo recording without a computer.
Imagine you're rehearsing with your band and want to record your session to analyze later. Or perhaps you're in the middle of a songwriting session and want to capture your ideas as quickly as they come to you. Either way, the StudioLive AR16c's stereo SD recorder has you covered. Insert any SD/SDHC card and you're ready to record your main mix to listen to later, so you'll never forget a great song idea or an amazing guitar solo. Doing mobile interviews for your podcast? Leave the computer at home and record straight to SD.
Effects without latency.
Monitoring with reverb and delay helps to create better recordings. Any vocalist or guitarist will tell you that a little reverb makes them feel more comfortable while performing. The StudioLive AR16c mixer's onboard effects processor lets you add high-quality reverb, delay, or chorus to any channel for a professional monitor mix. Like what you hear in your headphones? Record the Main Mix and capture the effects mix, too- with or without the dry channels- to blend with your multitrack recording. Experiment in post-production to your heart's content.
All the connections you need with a familiar look.
Packed with all the connections and controls needed to mix and record in the studio and on the stage, the StudioLive AR16c is the ultimate recording solution. The eight mono channels and four stereo channels include a musical three-band EQ, plus one of PreSonus' famed XMAX high-gain mic preamps. Two dedicated monitor mixes with balanced outputs provide your musicians the custom mix they need. The USB-C compatible connector ensures your StudioLive AR16c audio interface will be the center of your studio for years to come. And with high-resolution 96 kHz recording, a full complement of connections, and an instantly familiar workflow, the StudioLive AR16c is the perfect recording and mixing solution for the modern musician and content creator.
Includes Studio Magic Plug-in Suite.
This suite of plug-ins adds a wealth of fresh virtual instruments and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies- these are real-deal workhorses that you'll rely on for countless mixes.
System Requirements
Requirements for Capture™ and Studio One®.
Mac
• macOS® 10.11 or higher (64-bit only)
• Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)
Windows
• Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
• Intel Core 2 Duo (Intel Core i3 or faster recommended)
Mac and Windows Systems
• 4 GB RAM (8 GB or more recommended)
• 30 GB hard-drive space (Studio One)
• Internal or external 7200 RPM storage drive highly recommended
• Monitor with 1366x768 resolution (high-dpi monitor recommended)
Specifications
Microphone Preamp
Type: XLR Female, Class A XMAX
Maximum Input level (unity gain): +9 dBu +/-1.0 dB
Gain Control Range: 43 dB (+12 to +55 dB)
Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB
Frequency Response to USB (Direct): 20 Hz to 20 kHz, +0.5/- 1.5 dB
S/N Ratio to Outputs (+4 dBu): 94 dB
THD+N (min. gain, A-wtd): < 0.01%
Input Impedance: 1 kΩ
EIN (+55 dB gain, 150Ω input, 20 Hz-22 kHz, A-wtd): Mono Channels: < 128 dBu
Common Mode Rejection Ratio (1 kHz, +55 dB gain): 65 dB
Phantom Power: +48V, +/-3V, Global
(Note: All Channel Inputs sum through Mic preamp)
Instrument Inputs
Type: 1/4" TS Female, Unbalanced, Hi-Z
Maximum Input Level (min. gain, 1 [email protected]% THD+N): +9 dBu +/-1.0 dB
Gain Control Range: 43 dB, +/-1 dB (+12 to +55 dB)
Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB
Frequency Response to USB (Direct): 20 Hz to 20 kHz, +0.5/-1.5 dB
Dynamic Range (min. gain, A-wtd): > 105 dB
Dynamic Range (mid. Gain, unwtd): > 108 dB
THD+N (1 kHz, -1 dBFS, A-wtd): < 0.01%
THD+N (1 kHz, -1 dBFS, unwtd): < 0.01%
Input Impedance: > 1 MΩ
(Note: All Channel Inputs sum through Mic preamp)
Line Inputs
Type: 1/4" TRS Female, Balanced
Maximum Input Level (min. gain, 1 [email protected]% THD+N): +26 dBu +/-1.0 dB
Gain Control Range:
• Mono Channels: 40 dB, +/-1 dB (-5 to +35 dB)
• Stereo Channels: 0 dB or +10 dB (+10 dB Boost)
Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB
Frequency Response to USB (Direct): 20 Hz to 20 kHz, +0.5/-1.5 dB
S/N Ratio to Analog Outputs (+4 dBu): 85 dB
THD+N (1 kHz, -1 dBFS, A-wtd): < 0.01%
Input Impedance (Balanced): 10 kΩ
(Note: All Channel Inputs sum through Mic preamp)
Main, Control Room, Monitor, and FX Outputs
Type (Main Outputs): XLR Male, Impedance Balanced
Type (Control Room, Monitor, FX Outputs): 1/4" TRS Female, Balanced
Rated Output Level (Main Outputs): +24 dBu, +/-1.0 dB
Rated Outputs Level (Control Room, Monitor, FX Outputs): +18 dBu
Frequency Response: 20 Hz to 20 kHz, +0.5/-1.5 dB
Dynamic Range (A-wtd): > 108 dB
THD+N (Bandwidth 20 Hz - 20 kHz, -1 dBFS, unwtd): < 0.01%
Output Impedance: 100 Ω
Headphone Output
Type: 1/4" TRS Female, Stereo, Unbalanced
Maximum Output Level: 150 mW/channel @ 60 Ω
Frequency Response: 20 Hz to 20 kHz, +0.5/-1.5 dB
Dynamic Range (A-wtd): > 103 dB
THD+N (Bandwidth 20 Hz - 20 kHz, -1 dBFS, unwtd): < 0.01%
Channel EQ
Low Cut: 100 Hz, -18 dB/Octave
High Shelving: +/-15 dB @ 10 kHz
Mid Peaking (Mono Channels): +/-15 dB @ 140 Hz to 3.5 kHz (variable)
Mid Peaking (Stereo Channels): +/-15 dB @ 2.5 kHz
Mid-Band Q: Boost: 1.0, Cut: 2.5
Low Shelving: +/-15 dB @ 100 Hz
Physical
Dimensions: 18.9" x 15.6" x 3.5" (480mm x 397mm x 89mm)
Weight: 14.1 lb (6.4 kg)
Media
Youtube video product demo
Youtube video product demo
