PreSonus ioStation 24C 2x2 USB-C Audio Interface and Production Controller

SKU: # 727731   |   Model: # 2777700201   |    Product Reviews0 Reviews  Write a Review

ioStation 24C 2x2 USB-C Audio Interface and Production Controller

Additional Photos:

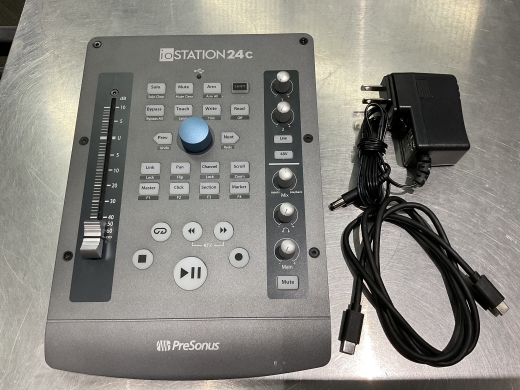

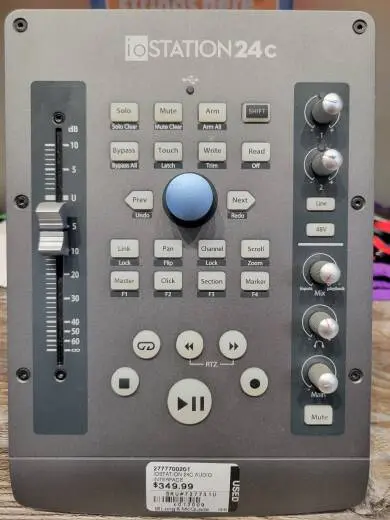

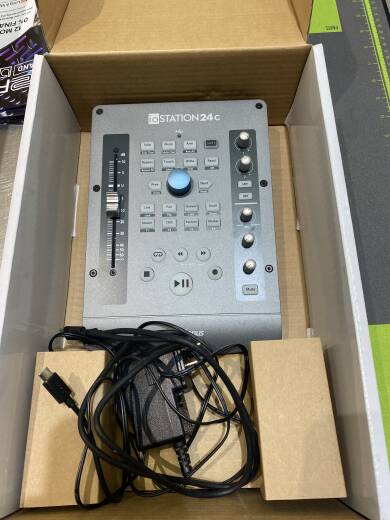

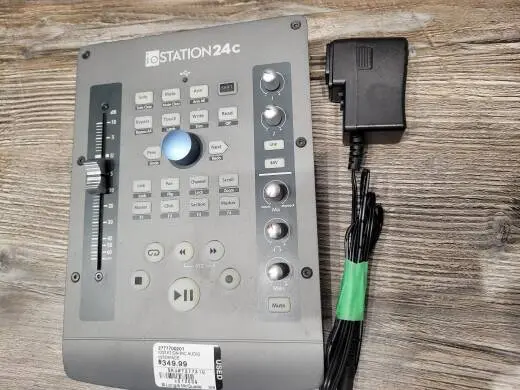

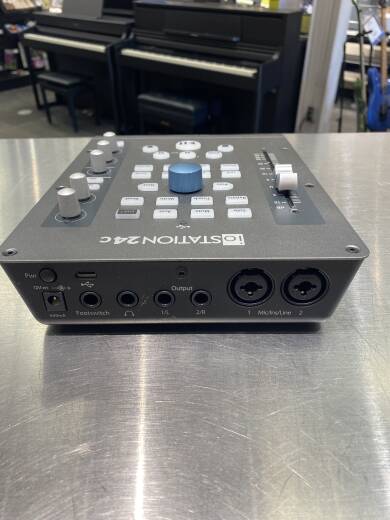

ioStation 24C 2x2 USB-C Audio Interface and Production Controller

Product Videos :

YouTube Video PreSonus—The ioStation 24c. Audio Production | Desktop Control
YouTube Video L&M @ NAMM 2020: PreSonus
Sale Price: $344.99 CDN
Original Price: $449.99 CDN
or from $36 CDN/mo
Notify Me
Limited stock available in select stores only

Audio Production | Desktop Control


When you're a solo artist, you have to be more than just creative to realize your vision - you must also be a producer and an audio engineer. The ioStation 24c audio interface and production controller provides the tools needed for all of these diverse roles in a compact, ergonomic desktop design that will fit into any home studio.

Record your audio through two pristine XMAX mic preamps and high-definition 24-bit, 192 kHz analog-to-digital converters. Navigate your recordings with easy-to-use transport controls. Edit your production and automate parameters in your favorite DAW with the powerful Session Navigator and mix it all with a 100 mm touch-sensitive motorized fader. Whether you're a musician producing your latest album or just getting started with your first podcast, the ioStation 24c gives you all the tools you need to record and mix with the ease of hands-on, tactile control - all in a single device that doesn't clutter your creative space.

General Features
• Two products in one: audio interface and production controller
• Record through two high-quality XMAX mic preamps
• Control your favourite DAW with a touch-sensitive motorized fader and intuitive navigation controls
• Compact, ergonomic design fits into any studio, whether in your bedroom or your backpack

Recording Features
• USB-C™ compatible (USB 2.0), 24-bit/192 kHz audio interface
• 2 mic/instrument/line inputs with XMAX mic preamps

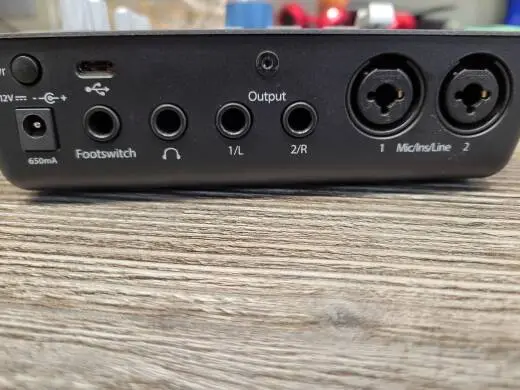

• 2 balanced 1/4" TRS main outputs
• Simultaneous I/O up to 2 inputs and 2 outputs
• Mixer knob for low-latency direct input monitoring
• 1-1/4" headphone output with independent level control
• USB 2.0 connectivity, macOS/Windows compatible

Production Features
• Single touch-sensitive, 100 mm long-throw, motorized fader
• Large, 360 degree button encoder
• Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
• Drop Marker, Next/Prev Marker, Next/Prev Event
• General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Click On/Off
• Session Navigator provides quick control over Track Scrolling, Timeline Scrolling, and much more
• Channel Controls: Level, Pan, Solo, Mute, Rec Arm
• Automation Controls: Touch, Latch, Trim, Write, Read, Off
• Native Studio One support with tightly integrated control
• Dedicated MCU modes for Logic, Live, and Cubase / Nuendo
• Customized HUI implementation for Pro Tools
• Footswitch input for hands-free start/stop (footswitch not included)

Included Software
• Studio One Artist recording and production software
• Over 6GB of additional loops and sample content
• ​Studio Magic Plug-in Suite

Technical Specifications

Microphone Preamp
Type: XLR Female (via Combo), Balanced
Maximum Input Level: +16 dBu (Balanced, min. gain)
Gain Control Range: 80 dB
Frequency Response: 20 Hz to 20 kHz (0.15 dB, unity gain, 48 kHz)
Dynamic Range: > 107 dB (A-wtd, min. gain)
Total Harmonic Distortion: < 0.007% (1 kHz, min. gain)
EIN: < -128 dBu (max gain, 40Ω, 22 kHz BW, A-wtd)
Input Impedance: 1.6 kΩ
Phantom Power: +48V, > 8 mA per input

Instrument Inputs
Type: 1/4" TS Female (via Combo), Unbalanced
Maximum Input Level: +15 dBu (Unbalanced, min. gain)
Gain Control Range: 80 dB
Frequency Response: 20 Hz to 20 kHz (0.2 dB, unity gain, 48 kHz)
Dynamic Range: > 110 dB (A-wtd, min. gain)
Total Harmonic Distortion: < 0.012% (1kHz, -1 dBFS, min. gain)
Input Impedance: > 1 MΩ

Line Inputs
Type: 1/4" TRS Female (via Combo), Balanced
Maximum Input Level: + 22 dBu (Balanced, min. gain)
Frequency Response: 20 Hz to 20 kHz (0.05 dB, unity gain, 48 kHz)
Dynamic Range: > 114 dB (A-wtd, min. gain)
Total Harmonic Distortion: < 0.007% (1 kHz, -1 dBFS, min. gain)
Input Impedance: 10 kΩ

Main and Line Outputs
Type: 1/4" TRS Female, impedance balanced
Maximum Output Level: +18 dBu (Balanced)
Frequency Response: 20 Hz to 20 kHz (0.2 dB, unity gain, 48 kHz)
Dynamic Range: > 109 dB (A-wtd)
Total Harmonic Distortion: < 0.005% (1 kHz, +4 dBu)

Headphone Outputs
Type: 1/4" TRS Female, Stereo, Unbalanced
Maximum Output Level: 150 mW/channel (56Ω load)
Frequency Response: 20 Hz to 20 kHz (0.2 dB, 56Ω load, 48 kHz)
Dynamic Range: > 107 dB (A-wtd)
Total Harmonic Distortion: < 0.02% (1 kHz, -1 dBFS, no load)
Headphone Impedance (working range): 32Ω to 300Ω

Digital Audio
Connection Type: USB 2.0 over USB-C™ Compatible Connection
ADC Dynamic Range: 115 dB (A-wtd)
DAC Dynamic Range: 115 dB (A-wtd)
Bit Depth: 24 bits
Internally Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz

Clock
Jitter: < 70 ps RMS (20 Hz 20 kHz)
Jitter Attenuation: > 60 dB (1 ns in => 1 ps out)

Power: 12 VDC, 1.2A, external power supply

Physical
Dimensions (H x D x W): 2.4" x 6.8" x 9.6" (61 x 172 x 244 mm)
Weight: 2.2 lbs (1 kg)

Media


PreSonus—The ioStation 24c. Audio Production | Desktop ControlWatch Video
Youtube video product demo
L&M @ NAMM 2020: PreSonusWatch Video
Youtube video product demo

Q & A


Question: Can the controller be used in studio one with a different interface?
- asked on Sep 6, 2023
Answer: Yes, this can be used as a controller with other audio interfaces. This unit is also a 2 channel audio interface.
- answered by Daryl Guy, Kamloops, British Columbia
