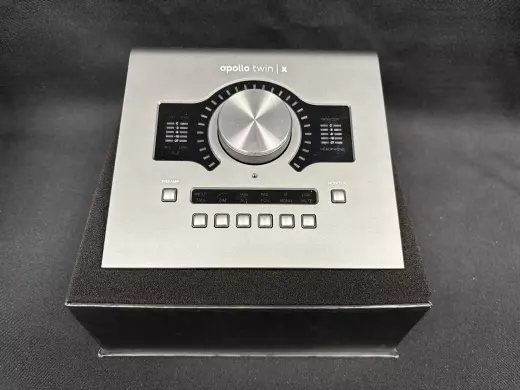

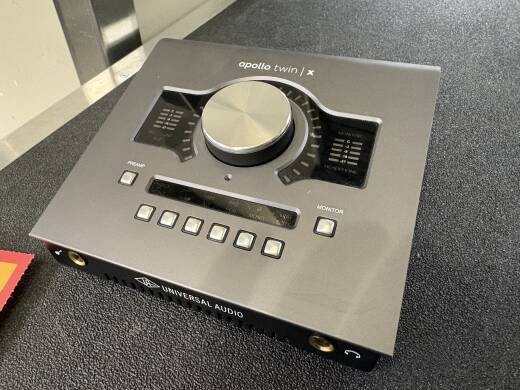

Universal Audio Apollo Twin X Thunderbolt 3 Audio Interface w/UAD-2 QUAD Core Processing
Additional Photos:
Key Features:
- Best in class audio quality with improved 24-bit/192 kHz conversion
- Realtime UAD Processing monitor and track through vintage compressors, EQs,
- tape machines, and guitar amp/pedal plug-ins with near-zero latency
- Two premium mic/line preamps; two line outs; front-panel Hi-Z instrument input and headphone output
- Unison™ technology for stunning models of classic mic preamps and guitar amps
- Built-in talkback microphone for communication and recording
- Monitor remote functions can replace dedicated monitor controllers
- UAD-2 DUO or QUAD DSP processing onboard
- Thunderbolt 3 connection for blazing-fast PCIe speed on modern computers
- Uncompromising analog design, superior components, and premium build quality throughout
- Cascade up to four Thunderbolt-equipped Apollos and six total UAD-2 devices adding I/O and DSP as needed
Improved Monitoring and Built-In Talkback Mic
The new Apollo Twin X offers greatly improved monitor functionality versus the original Twin with Mute, DIM, Mono, and ALT speaker switching. It also includes dedicated monitor remote controls and a built-in Talkback mic for easy communication with talent and/or recording slate cues. These features, combined with Apollo Twin X's scalability, make it the new standard for professional desktop recording.
Build a Networked Studio
Apollo Twin X offers up to 10 x 6 simultaneous input/output channels. Thanks to Apollo Expanded software, users of any Thunderbolt-equipped Apollo audio interfaces can combine up to four Apollos and six total UAD-2 devices adding I/O and DSP as your studio grows. Apollo Twin X makes the perfect intelligent desktop controller for a full Apollo system.
Audio Interface
- Sample rates up to 192 kHz at 24-bit word length (96 kHz max on S/PDIF inputs)
- Up to 10 x 6 simultaneous input/output channels
- Two channels of analog-to-digital conversion via:
- Two balanced mic/line inputs
- One Hi-Z instrument input
- Six channels of digital-to-analog conversion via:
- Digitally-controlled stereo monitor outputs
- Stereo headphone outputs
- Line outputs 3-4
- Up to eight channels of digital inputs via:
- Eight channels ADAT optical with S/MUX for high sample rates, or
- Two channels S/PDIF optical with sample rate conversion
Microphone Preamplifiers
- Two high-resolution, ultra-transparent, digitally-controlled analog mic preamps
- Front panel and software control of all preamp parameters
- Low cut filter, 48V phantom power, 20 dB pad, polarity inversion, and stereo linking
Monitoring
- Independently-addressable stereo monitor outputs
- Independently-addressable stereo headphone outputs
- Independently-addressable line outputs 3-4 can be used for additional cue mix
- Front panel control of level, mute, dim, mono, alternate speakers, and talkback
- Built-in talkback microphone for communication and recording
- All outputs are DC coupled
Apollo X Series System Requirements
ALL
• Thunderbolt 3 cable (not included)
• Internet connection to download software and authorize UAD plug-ins
• 6 gigabytes available storage
• Quad Core i7 or better processor recommended
For additional compatibility information, visit help.uaudio.com
MAC
• Available Thunderbolt 1, 2, or 3 port
• Thunderbolt 1 and 2 connections require an Apple Thunderbolt 3 to Thunderbolt 2 Adapter (not included)
• macOS 10.12 Sierra, 10.13 High Sierra, 10.14 Mojave, 10.15 Catalina, or 11 Big Sur
WINDOWS
• Available Thunderbolt 3 port
• Windows 10 (64-Bit Edition)
*Apollo Twin includes the "Realtime Analog Classics" UAD plug-in bundle. Other UAD plug-ins sold separately.
