Burl Audio B80 BMB4 Mothership with SoundGrid and BP300 Power Supply
Additional Photos:

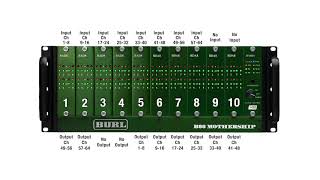

Product Videos :
80-Channel Configurabale AD/DA Interface
The B80 MOTHERSHIP has redefined digital recording. For anyone who has felt that digital recording has been lacking soul, warmth, and musicality, the B80 MOTHERSHIP is the answer. The MOTHERSHIP stands out from every other interface on the market not because it is coloured, but because it does not sterilize the source.Pushing the boundaries once again, the B80 MOTHERSHIP AD/DA converter has up to 80 analog channel capability. Using a card-based system, and a heavy-duty 4U chassis, the B80 MOTHERSHIP employs 10 card slots with 4 and 8 channel AD/DA cards, all with class-A, discrete electronics without any integrated circuits or capacitors in the signal path. With a completely configurable AD/DA interface, a converter for any situation can be realized.
Powering a unit like the B80 MOTHERSHIP takes some juice - the BP300 was designed to drive the 80 channels of class-A analog circuitry. With a 300-watt continuous power capability, and +/- 24-volt rails, a multi-channel AD/DA converter is finally getting the power it deserves.
B80-BMB4 MOTHERSHIP w/PSU Includes:
• 4U main chassis
• BMB4 (SoundGrid) motherboard
• 1 SoundGrid Ethernet port
• 1 BNC Word Clock Input
• 2 BNC Word Clock Outputs
• 10 card slots (all slots accept AD/DA, AES and BCLK)
• 2x 1U vents
• BP300 power supply with 1x 4-pin Mothership power cable and 1x IEC cable
BMB4 SOUNDGRID MOTHERBOARD
The BMB4 features an Ethernet port for 64 IO channels of Waves SoundGrid connectivity. SoundGrid is an Audio-over-Ethernet networking and processing technology developed by Waves. SoundGrid provides extremely low-latency, high-channel-count audio processing using standard Intel CPUs and 1 Gbps Ethernet networks for studio, live sound, and other real-time professional audio applications. Real-time audio processing is performed on standard Intel-based plugin servers, running a Waves-customized real-time version of Linux. Waves SoundGrid audio over Ethernet technology is a robust, proven system for audio over IP networking. Amongst the competing standards for audio over IP, SoundGrid boasts impressive, low latency. With 6 BAD8s and 4 BDA8s a 4832 IO can be achieved. With 2 BAD8s and 8 BDA8s a 1664 IO can be achieved. With the configurability of the MOTHERHSHIP the IO possibilities are limitless.
