Pearl e/MERGE Electronic Hybrid Drum Kit
Additional Photos:
Product Videos :
There are three key elements that separate e/MERGE from anything that has come before. The all new MDL1 e/MERGE Module, KORG's amazing Wave Trigger Technology and Pearl's acoustic-like PUREtouch Electronic Pads all combine to create an exceptional e-drumming experience.

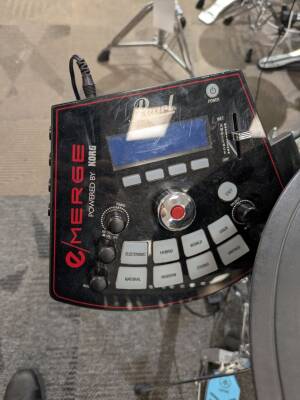

MDL1 Module: The Key to Countless Possibilities
Simple yet elegant in design, the e/MERGE MDL1 module features a full library of high definition, natural, organic and minimally processed acoustic Pearl drums. Add to that the very best electronic, world, orchestral and specialty percussion sounds from KORG's vast library of pristine quality samples.
KORG Wave Trigger Technology: Faster than the Speed of Sound
Wave Trigger Technology is fast. As fast as audio. Faster than anything simply trigger based. This speed adds a realism to the playing experience never before available to the e-drummer. Wave Trigger Technology uses parallel processing of your character and your sound and seamlessly layers it with high definition samples of real Pearl acoustic drums to create an end result that is as much a reflection of you as with any acoustic performance. With WTT, sample layers are smoothed, latency is imperceivable, and sensitivity is on a different dimension from anything that has come before.
PUREtouch Electronic Pads: Real Response
The patent pending PUREtouch Electronic Pads were constructed by Pearl and KORG engineers with six layers of material that work together to create the most natural feel of any electronic pad available. Combined with the WAVE TRIGGER TECHNOLOGY, for the first time ever, your choice of stick will impact the sound of your electronic kit. Every area of the snare drum head responds like an acoustic drum from the center to the edge. You can also affect the feel by changing the head tension. If your preference is for a tighter feel, simply tighten the head. Two separate rim triggers are perfectly positioned for cross stick and rim shots, and the snare drum's 14" diameter makes this feel as natural as any acoustic drum.
PUREtouch Cymbal Pack
Each e/MERGE kit includes a PUREtouch Electronic Cymbal pack consisting of an 18" three zone Ride (bell, bow and edge), 15" two zone Crash (bow and edge), and 14" two zone Hi-hats (bow and edge). PUREtouch Crash and Ride Cymbals feature a multi-layer construction encapsulated in rubber with a playing action similar to that of acoustic cymbals, but with a slightly softer feel for controlled sound volume. PUREtouch cymbals have a patent pending feature, based upon frequency, that blends the edge and bow sounds consistent with where you strike the cymbal. Most electronic cymbals include a choke feature that cuts off the sound when you grab the switch located under the cymbal, but the patent pending natural choke function of PUREtouch Cymbals eliminates the sound and instantaneously triggers the natural sympathetic harmonic ring inherent to choking real acoustic cymbals.
Bass Drum
The e/HYBRID kit configuration (EM54HB) features an 18" acoustic bass drum with an internal version of the EMKCB kick pad. Both pad styles feature a red, front mounted LED light that can be controlled through the MDL1 sound module.

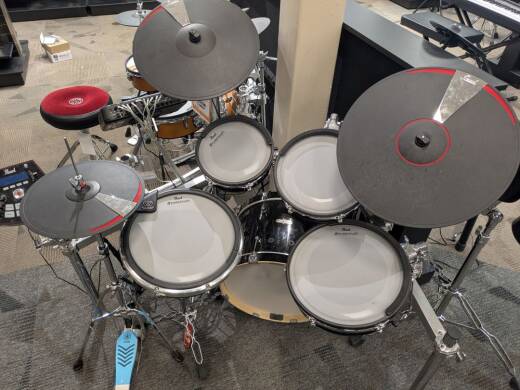

Kit Configuration
• EM14S 14" PUREtouch Snare Drum Pad
• EM10T 10" PUREtouch Tom Pad
• EM12T 12" PUREtouch Tom Pad
• EM14T 14" PUREtouch Tom Pad
• EMEBP 18" PUREtouch Bass Drum Pad Complete
• EM14HH 1pr. 14" PUREtouch Hi-Hat Cymbal Pad Set
• EM15C 15" PUREtouch Crash Cymbal Pad
• EM18R 18" PUREtouch Ride Cymbal Pad
• MDL1 Electronic Drum Module
• DR80EM ICON e-Rack System
• CH830ES Cymbal Holder, Short Boom x2
• S830 Snare Stand
• TH70E Tom Holder x3
• PCR50L Module Clamp
*Hi-hat stand and kick pedal not included.
MDL-1 Module Specifications
Sound Generator: 2 CPU (4 core + 2 core)
Polyphony: 128 voices. 10 Click Voices
Voices: 700 HD Voice Sound Library
Drum Kit: 35 HD Preset Kits, 36 Effects
Song Recording Type: 44.1Hz, 16-Bit WAV
Song Recording Time: Approximately 12 hours
Tempo: BPM 30-300
Beat: 1/2 - 24/2, 1/4 - 24/4, 1/8-24/8, 1/8T - 24/8T, 1/16 - 24/16 (T=Triplet)
Controllers: Knobs and Ambient Slider Control
Display: 3.25" x 1" Graphic LCD
OUTPUT:
• Master Out L/Mono & R
• 8 Direct Outs
• Headphone Out
INPUT:
• Aux In TRS Mini
• Main Trigger Inputs (DB-25 Connector)
• Accessory Inputs (3)
• USB to PC Port (transport USB audio & MIDI data)
• USB-A (for WAV files and Settings data)
• MIDI Output
Power Supply: 120-240v, 50-60 Hz, Switching Power Supply
Effects: Basic Comp, Attack Comp, Overdrive 1, Overdrive 2, Tube Drive, Radio Crunch, Distortion, Rich Hall, Plate, Reverb, Small Room, Early Reflections, Chorus, Short Delay Chorus, Slow Flanger, Fast Flanger, Slow Phaser, Fast Phaser, Ring Mod 1, Ring Mod 2, Sync Delay 1, Sync Delay 2, Sync Delay 3, Sync Delay LR 1, Sync Delay LR 2, Sync Delay LR 3, Short Delay, Short Delay LR, Mod Delay, Mod Delay LR, Tape Echo, Radio Filter LP, Radio Filter HP, Radio Filter BP, Decimator, Lo-Fi Wah and Auto Wah.
Module DImensions: 9" x 7.5" x 2" / 22.86cm x 19.05cm x 5.08cm
Module Weight: 2.2 lb / 1kg
