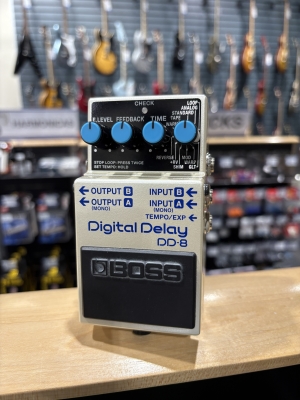

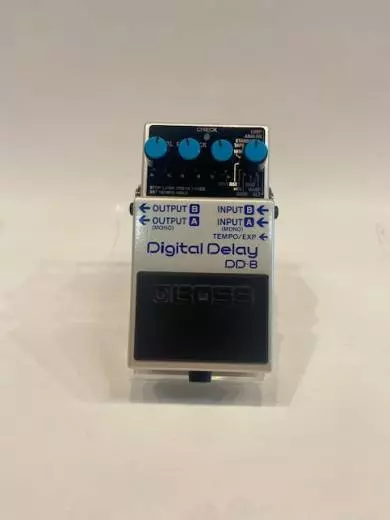

BOSS DD-8 Digital Delay

DIVERSE SONIC RANGE, MAXIMUM DELAY POWER

This loaded pedal delivers more of everything - more great sounds, more delay time, more control options, and more connectivity. And it does it all in a standard BOSS pedal that slides easily into any mono or stereo setup. Eleven modes provide delay colours from basic to exotic, plus a looper with unlimited overdub capability and external control support. For maximum versatility in a minimum amount of space, there's no better delay stomp than the DD-8.

Features

• Eleven versatile modes include basic digital delay, vintage echoes, shimmer, mod, looper, and more
• Looper offers up to 40 seconds of recording time, overdub capability, and three-pedal operation with external footswitches
• Three newly developed delay types: Warm, +RV (delay+reverb), and GLT (rhythmic delay)
• Up to 10 seconds of delay time available with tap tempo input
• Carryover switch sets whether delay trails continue or stop when the effect is bypassed
• True stereo I/O and three selectable output modes (independent, panning, and wide stereo)
• Smart I/O jacks support a variety of connection setups (mono, stereo, wet/dry, wet only, and more)
• Support for external control with two footswitches or an expression pedal
• Unique Twist function available in each delay mode via an external footswitch
• BOSS five-year warranty

DD-8 Delay Modes

• Analog - Classic analog BBD delay sound.
• Standard - Clear digital delay.
• Tape - Vintage tape-based delay sound.
• Warm - Digital delay with a softer sound.
• Reverse - Backwards delay for cool psychedelic effects and other unique tones.
• +RV - Digital delay with reverb added.
• Shimmer - Pitch-shifted delay for lush, shimmering textures.
• Mod - Digital delay with modulation added on the repeats.
• Warp - Unique delay with expressive pedal control. Holding the pedal switch increases feedback and level, allowing you to create ambient swell effects.
• GLT - Newly developed delay mode that creates glitchy machine-gun effects when the pedal switch is pressed. Adjust the Feedback and Time knobs for a wide variety of sounds.
• Loop - Loop recorder with overdub capability and up to 40 seconds of recording time with mono input (20 seconds with stereo input).

Specs

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls:
• MODE knob
• TIME knob
• FEEDBACK knob
• E.LEVEL (Effect Level) knob
• CARRYOVER switch
• Pedal switch
Indicator: CHECK indicator (Used for indication of check battery)
Connectors
• INPUT-A(MONO)/INPUT-B jack: 1/4-inch phone type
• OUTPUT-A(MONO)/OUTPUT-B jack: 1/4-inch phone type
• TEMPO/EXP jack: TRS 1/4-inch phone type
• DC IN jack
Power Supply: Alkaline battery (9 V, 6LR61); AC adaptor (PSA series: sold separately)
Current Draw: 65 mA
Expected battery life under continuous use*:
• Alkaline: Approx. 5 hours
*These figures will vary depending on the actual conditions of use.
Dimensions (W x D x H): 73 x 129 x 59mm / 2-7/8 x 5-1/8 x 2-3/8 inches
Weight (including battery): 440 g / 1 lb
