Nord Nord Grand 88-Note Keyboard w/Kawai Hammer Action
Additional Photos:
Product Videos :
Kawai Responsive Hammer keybed with Ivory Touch
The well balanced and responsive triple sensor keybed features an advanced mechanism providing extraordinary control both when playing percussively as well as pianissimo with fluent repetitions and retriggering without lifting the key completely. The addition of an Ivory Touch surface gives the keybed an optimal feel and authenticity.
Performance
The Nord Grand has dedicated knobs and buttons for all essential functions required in a live performance situation. Creating Layers and Splits, adding effects or transposing the instrument can be accomplished on the fly.
Factory Bank
The Nord Grand factory bank includes 10 Grands, 9 Uprights, 10 Enhanced Electric Pianos, Clavinet, Digital Pianos and more from the exclusive Nord Piano Library - all handpicked for their unique character! Nord's state-of-the-art sampling techniques capture the extraordinary nuances and real character of the source instruments with breathtaking realism. All sounds can easily be replaced using the Nord Sound Manager. The exclusive Nord Piano Library is constantly updated with new unique world class sounds - always free of charge
MAIN FEATURES
General
• 88-note Kawai Hammer Action with advanced triple sensors
• Ivory touch keys
• Seamless Transitions when changing programs
• Layer and Split with Split Point crossfades
• OLED display for excellent overview
• Support for Nord Piano Monitor
Piano Section
• 2 GB memory for Nord Piano Library
• 120 Voice Polyphony
• Dedicated Piano Filters for Acoustic and Electric Pianos
• 3 Dynamic Curves
• Dynamic Pedal Noise with Nord Triple Pedal (included)
• Advanced String Resonance
• Soft Release
Sample Synth
• 512 MB Memory for Nord Sample Library 3.0
• Dedicated Sample Synth section with Attack, Decay/Release and dynamic controls
Effects
• High quality stereo effects modelled after classic stomp boxes
• Reverb with three modes - Room, Stage and Hall
SPECIFICATIONS
Global
• OLED Display
• Seamless Transitions
• Split Point Crossfades
• 16 banks with 25 programs - 400 locations
• Organize functionality for programs
• Live Mode - 5 Live programs
• Global Transpose: +/- 6 semitones
• Program Transpose: +/- 6 semitones
• Fine-tune: +/- 50 Cents
• Keyboard Touch: 3 velocity response curves
• 88-note Kawai Responsive Hammer keybed with Advanced Triple Sensors
• Split functionality with selectable split point and LED indication
• Optional Split crossfade
• Layer functionality
• Panel Lock option
• Mono Output option
• Dynamic Sustain Pedal action with the included Nord Triple Pedal
• USB-MIDI
• Free OS updates
Piano Section
• 6 types - Grand, Upright, Electric Pianos, Clavinet, Digital and Misc.
• Each category can contain up to 20 different models.
• 120 Voice Polyphony (stereo/mono pianos)
• Piano Timbre/EQ settings (Soft, Mid, Bright) with dedicated Electric Piano filters (Soft, • Mid, Bright, Dyno 1 and Dyno 2).
• Advanced String Resonance (Generation 2) - adjustable amount
• Selectable Soft Release for Grand, Upright, Electric Pianos and Harpsichord
• Selectable Pedal Noise for Grand, Upright and Electric Pianos 1 - adjustable amount
• Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)
Sample Synth Section
• 46 Voice Polyphony
• Amp envelope with Attack and Decay/Release
• Selectable velocity sensitive low pass filter and dynamic range
• Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)
• Volume controllable with Volume Pedal (not included)
Memory
• Approx. 2 GB dedicated to the Nord Piano Library
• Approx. 512 MB dedicated to the Nord Sample Library 3.0
Effects Section
Effect 1
• Pan, Tremolo, Wah and Ring Modulator
• Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob
• Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal
Effect 2
• Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe
• Two selectable depths for each effect
• Amp Simulations, Comp and EQ
• Comp/Amp - three amp/speaker simulations, Tube Overdrive
• Drive/Compression amount controlled with the Drive knob
• Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation
Master Effects
• Dedicated Reverb with Room, Stage and Hall algorithms, each with an additional Bright mode
• Dedicated Delay Effect - Rate, Amount and Tap-tempo function
Connections
• 2 Audio outputs L & R - 1/4", 6.35 mm jacks, unbalanced
• 1 Monitor input - 1/8", 3.5 mm stereo jack
• 1 Headphone output - 1/4", 6.35 mm stereo jack
• 1 Piano pedal input - 1/4", 6.35 mm jack. Use the included Nord Triple Pedal or a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc
• 1 Volume Pedal input - 1/4", 6.35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
• MIDI In, MIDI Out - 5 pin DIN connectors
• USB - type B connector - for transferring sounds and USB MIDI
• IEC C14 power connector
• Nord Piano 2 Connections
Dimensions
• Nord Grand: 1286 mm (50.7") x 168 mm (6.6") x 387 mm (15.2")
• Nord Triple Pedal: 264 mm (10.4") x 224 mm (8.8") x 70 mm (2.8")
Weight
• Nord Grand: 20.9 kg (46.0 lbs)
• Pedal: 2 kg (4.4 lbs)

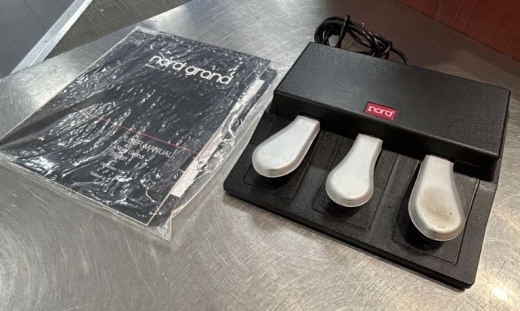

Included Accessories
- Nord Triple Pedal
- User Manual
- Power cord
Specifications subject to change without notice. *Steinway, Wurlitzer, Hohner, Clavinet, Farfisa and Vox are trademarks of their respective owners and are not affiliated or associated with Clavia. These trademarks are mentioned here as a reference to a sound only.
