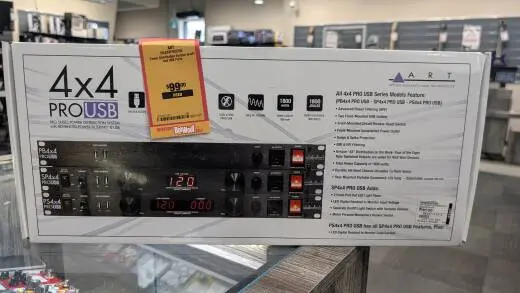

ART Pro Audio Power Distribution System w/AFI and USB Ports

SKU: # 714321   |   Model: # PB4X4PROUSB   |    Product Reviews0 Reviews  Write a Review

Power Distribution System w/AFI and USB Ports

Additional Photos:

Power Distribution System w/AFI and USB Ports
Your Price: $169.00 CDN
or from $25 CDN/mo
Notify Me

Buy Online

 Add to Cart

Buy In-Store

The ART 4x4 Series PRO USB system may be used everywhere you need power distribution and conditioning. Systems feature a unique "4x4" AC jack layout on the back of the unit where four of the eight rear outputs are set 1.25-inches apart, allowing the user to plug in wide power cables and multiple wall warts devices.

Built into the ART 4x4 PRO USB Series is surge and spike detection/handling and it also has FRI and EMI filtering to eliminate cable induced noise in the AC power. A front-located brightly illuminated on/off power switch confirms the power source and USB charging ports provide access .

Total capacity is 1800 watts AC and the 15A breaker is conveniently front-mounted. The rugged, all steel chassis occupies 1U rack spaces and is intended for installation into standard 19-inch equipment racks. Applications for the 4x4 PRO USB Series Power Distribution Systems include PA systems, DJ sound systems, home project and commercial recording equipment.

Features
• 1800 Watt capacity
• 9 AC jacks
• Surge and spike detection/handling
• FRI and EMI filtering
• 1A and 2.1A USB charging outlets
• Rack mountable; occupies 1U

Specifications
• Power Capacity: 1800 Watts
• Circuit Breaker: 15 Amp Domestic, 8 Amp Export Front Location
• Power Outlets: Rear Outlets (x 8) Front Outlet (x 1) USB Charger 5V/3.1A (OVP&OCP)
• Power Switch: Front Location
• Illumination: Yes - In "On" Position
• Surge & Spike Protection: Yes
• Power Dissipation: 1800 Joules
• Filtering: APF, EMI & RFI
• Construction: All - Steel Chassis
• Light Pipes: PB4x4Pro - None, SP4x4Pro - 2 Front Pull-Out Shock Mounted w/dimmer
• Metering PB4x4Pro - None SP4x4Pro - Input Voltage
• Dimensions (HWD): 1.75-inch x 19-inch x 6.5-inch, 44mm x 482mm x 165mm '
• Weight: 5.5 lbs. (2.5 kg) PB4x4PRO, 6.3 lbs. (2.8 kg) SP4x4PRO 6.6 lbs. (3.0 kg) PS4x4PRO

Q & A


Question: How long is the power cord on this power bar?
- asked on Mar 3, 2024
Answer: 66 inches
- answered by roy shermack, Edmonton Highlands, Alberta
Was this answer helpful? Vote helpful Vote not helpful

Reviews


There are currently no reviews for this product. Be the first to write one!
