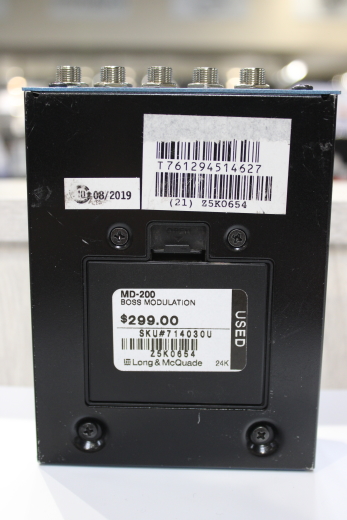

BOSS MD-200 Modulation

Simply Sophisticated

With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit AD/DA, 32-bit internal processing, and 96 kHz sampling rate, plus support for additional control via external switches, an expression pedal, or MIDI.

Outfitted with algorithms from the flagship MD-500, the MD-200 Modulation delivers an array of world-class effects in one small, convenient pedal. Twelve different modes provide every mod sound you need and more, and each includes customized controls that unlock deep tone shaping right from the panel. And with the powerful insert function, it's simple to patch in drive pedals and other effects for selectable pre or post processing.

Twelve Mod Essentials in One Pedal
Compact and mighty, the MD-200 gives you every key mod effect in a minimal footprint. Modern and vintage BOSS chorus effects are included, plus phaser, flanger, rotary, vibrato, and tremolo. Classic vibe and '70s phaser effects are also available, complete with selectable distortion for added versatility. BOSS's famous Slicer delivers lots of cool rhythmic grooves, while the rich Overtone effect dishes up fat octave tones and unique sonic colors. There's a highly adjustable auto wah as well, which can double as a foot wah when an expression pedal is connected.

Dial in Sounds Fast

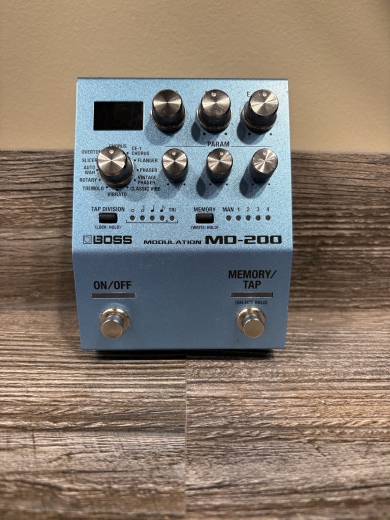

With the MD-200's simple and direct interface, it's easy to craft inspiring sounds in the heat of the moment. Using dedicated controls, you can quickly dial in rate, depth, and level for any selected mode. You can also tap in the rate with a footswitch while playing, and visually set note subdivisions right from the panel. Going further, three additional parameter knobs dynamically change functions with each mode, providing extended tone shaping with no need to menu dive.

Save and Recall Your Favorite Setups
The MD-200 offers four onboard memories for saving favorite setups and recalling them while performing. There's also a Manual setting that reflects the current panel status, essentially giving you a fifth setup to choose from. You can scroll through memories with an MD-200 footswitch, and it's also possible to limit the scrolling range or assign memories directly for even faster access.

Instantly Change Effect Order for Optimum Tone
Using the MD-200's insert loop function, you're able to patch external pedals, set the ideal effect order, and save the setting to an onboard memory. For example, you can place a phaser or classic vibe before an external pedal in one memory, a chorus or flanger after in the next, and then switch between them. This is particularly useful with drive pedals, where the signal order can have a dramatic effect on the selected mod sound.

Deep Real-Time Control
By default, the MD-200's multi-function footswitches control bypass, memory scrolling, and tap tempo, but you can easily reassign them to alternate functions as needed. External control is also possible via footswitches or an expression pedal, and MIDI I/O is even provided on space-saving mini TRS jacks. Via MIDI, you're able to chain multiple 200 series pedals and select memories on all of them at once, and also control various functions from MIDI devices like the ES-8 and ES-5 effects switchers.

Features
• Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
• Twelve versatile modes provide a wide range of modulation types
• Dedicated rate, depth, and level controls, plus three parameter knobs that change function with the selected mode
• Insert Loop function for positioning external pedals before or after mod effects
• Real-time panel setting and four memories for storing favorite sounds
• Global setting optimizes flanger, phaser, and auto wah effects for guitar or bass
• Panel Lock function disables controls to prevent unwanted changes
• Customizable multi-function footswitches for tap tempo, memory selection, and more
• Support for expanded control via external footswitches, an expression pedal, or MIDI

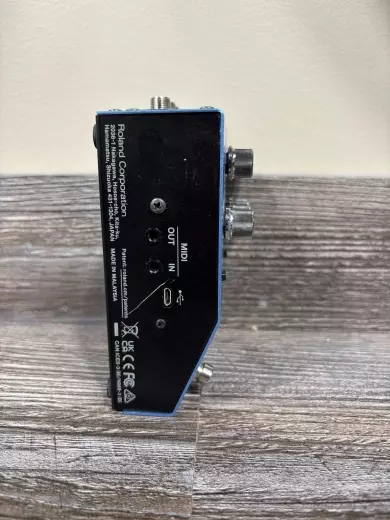

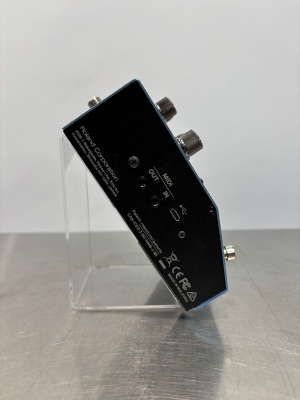

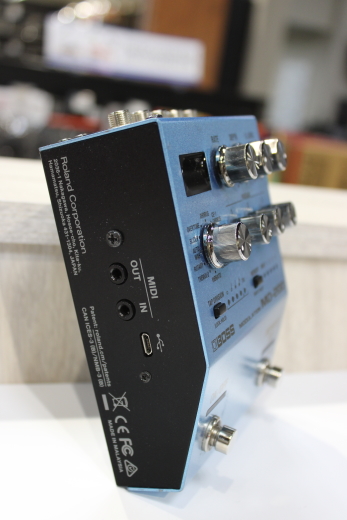

• Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
• Micro USB jack for firmware updates

MD-200 Modulation Modes
• Chorus: Cutting-edge BOSS chorus derived from the advanced Prime Chorus in the MD-500.
• CE-1 Chorus: Authentic recreation of the legendary CE-1 Chorus Ensemble that includes chorus and vibrato modes from the original pedal.
• Flanger: Cutting-edge BOSS flanger derived from the advanced Prime Flanger in the MD-500.
• Phaser: Cutting-edge BOSS phaser derived from the advanced Prime Phaser in the MD-500.
• Vintage Phaser: '70s script-type phaser, plus a selectable distortion effect.
• Classic Vibe: Vintage Uni-Vibe sound, plus a selectable fuzz effect.
• Vibrato: Versatile vibrato effect with wide-ranging modulation and tonal adjustment.
• Tremolo: Selectable tremolo and stereo pan modes, plus waveform and tone controls.
• Rotary: Vintage rotating speaker effect with adjustable slow/fast speeds and horn/rotor balance.
• Auto Wah: Expressive wah effect with frequency, resonance, and three filter types, plus selectable guitar or bass operation. Can also be used as a foot wah with an optional expression pedal.
• Slicer: Original BOSS pattern, Classic Vibe; Vintage Uni-Vibe sound, plus a selectable fuzz effect effect derived from the popular SL-20 Slicer pedal.
• Overtone: Original BOSS effect that uses advanced MDP tech to create unique new sounds with altered pitch and harmonic characteristics.
