PreSonus StudioLive 32SC - 32-Channel Digital Mixer and USB Audio Interface
Additional Photos:
Product Videos :
Small Digital Mixer. Big Power.
The StudioLive 32SC is a compact, rack-mountable 32-channel digital mixer that can be quickly and easily scaled for 16-, 24-, and 32-channel applications. Don't let the road-ready size fool you; the StudioLive 32SC sports a dual-core PreSonus FLEX DSP Engine powering 40 mixing channels, 26 mix buses, and 286 simultaneous processors including 4 stereo reverberation systems and Fat Channel plug-in models on every input channel and mix bus. With 128 (64x64) channels of USB recording and AVB network audio I/O, flexible routing options, and studio-grade audio quality, the StudioLive 32SC provides all the tools you need whether you're building your dream studio or putting together a pro touring rig.The Scalable Digital Mixer.
The StudioLive 32SC digital mixer and the complete PreSonus StudioLive Series III ecosystem of AVB networking products allow you to create a system that is truly customized for your needs. Connect NSB-series stage boxes to add remote analog inputs and outputs wherever they're required and complete your 32-channel, 16-bus StudioLive 32SC. Add EarMix 16M personal monitor mixers to give your musicians their own customizable 16-channel monitor mixes. Multiple StudioLive Series III digital mixers can be networked, allowing you to route audio to and from any device on the audio network thanks to the flexibility of Digital Patching on your StudioLive 32SC digital mixer and in UC Surface remote mixer software.
The Best Music Recording Software, Included!
Studio One revolutionized music recording, making common mixing and production tasks as easy as drag-and-drop. Tight integration with StudioLive 32SC digital mixers allows you to control preamp levels and more right from the Studio One software console. Press the DAW button on your StudioLive 32SC, and your Studio One controls are right under your fingertips on your digital mixer. Studio One control can be toggled on and off, allowing you to quickly switch between your live mix and your production mix with the press of a button. Studio One Artist is included with the StudioLive 32SC, so you can start recording right out of the box.
Remote Control Your Digital Mixer from Anywhere- On Any Device.
PreSonus StudioLive Series III digital mixers are tightly integrated with an entire suite of state-of-the-art software. Mix wirelessly using UC Surface touch-control software for macOS, Windows, iPad and Android. Control your monitor mixes with QMix-UC for iPhone, iPod touch, and Android devices. Whether you're adjusting monitor mixes on stage, moving around the room to dial in your mix, or using your mobile device as a second screen for your StudioLive 32SC digital mixer, remotely controlling your mix from anywhere just got easier.
The Digital Mixer Built to Record Music.
With 128 (64x64) channels of recording over USB, you can record every input channel and bus on your StudioLive 32SC for the ultimate recording rig. Each channel can independently access its analog input or its dedicated digital return from your computer. Ten vintage EQ and classic compressor Fat Channel plug-in models are included and can be used onboard your mixer, as well as within Studio One. When you're ready for more signal processing options, PreSonus offers four Fat Channel plug-in collections with 15 additional models. Fat Channel plug-ins can be inserted on every input channel and output bus, giving you extensive, studio-style processing while mixing and recording.

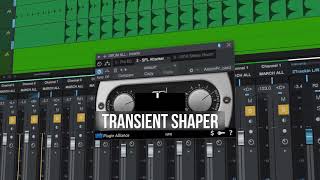

Includes Studio Magic Plug-in Suite.
This suite of plug-ins adds a wealth of fresh virtual instruments and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies; these are real-deal workhorses that you'll rely on for countless mixes.
Features
• Powered by the new dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
• 40 input-channel digital mixer with 17 touch-sensitive motorized faders
• 26 mix buses
• 286 simultaneous processors
• State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
• FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
• 128-channel (64x64) recording over USB
• Onboard multi-channel SD recorder (34x34) with true Virtual Soundcheck mode
• Remote control every mix function from your computer, iPad, or Android tablet with UC Surface
• Capture 3.0 multitrack software included
• Advanced Studio One integration (Studio One Artist Included)
Specifications
Microphone Preamplifier
Input Type: XLR Female, balanced
Frequency Response to Main Output (at unity gain): 20-20 kHz, +/-0.5 dBu
Input Impedance: 1 kΩ
Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
Gain Control Range (+/- 1 dB): 0 dB to +60 dB
Maximum Input Level (unity gain): +12 dBu
Phantom Power (+/-2 VDC): 48 VDC, switchable per channel
Line Inputs
Grade: 1/4" TRS Female, balanced
Frequency Response to Main Output (at unity gain): 20-20 kHz, 0.5 dBu
Input Impedance: 10 kΩ
Maximum Input Level: +18 dBu
Tape Inputs
Grade: RCA Female, unbalanced (stereo pair)
Maximum Input Level: +12 dBu, +/-0.5 dBu
XLR Outputs
Grade: XLR Male, balanced
Maximum Output Level: +24 dBu, +/-0.5 dBu
Output Impedance: 100Ω
Line Outputs
Grade: 1/4" TRS Female, balanced
Maximum Output Level: + 18 dBu, +/-0.5 dBu
Output Impedance: 100Ω
Tape Outputs
Grade: RCA Female, unbalanced (stereo pair)
Maximum Output Level: + 18 dBu, +/-0.5 dBu
Output Impedance: 100Ω
Headphone Output
Grade: 1/4" TRS Female, active stereo
Maximum Output: 100 mW / ch. @ 60Ω load
Frequency Response: 20 Hz - 20 kHz (+/-0.5 dB)
S / N ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd
Digital Audio and Control
ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
USB Recording Port: USB 2.0, Type-B
AES / EBU output: XLR Male
Network Control Port: RJ-45
AVB Audio Network Port: Locking XLR Ethernet
Internal Processing: 32-bit, floating point
Sampling rate: 48 kHz, 44.1 kHz
A / D / A Bit Depth: 24
Reference Level for 0 dBFS: +18 dBu
Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
Power / Environmental
Connector: IEC
Input-Voltage Range: 90 to 230 VAC (+/-10%)
Power Requirements (continuous): 85W
Recommended Ambient Operating Temperature: 0⁰ to 40⁰ Celsius / 32⁰ to 104⁰ Fahrenheit
Physical
Dimensions: 22.97" x 17.59" x 6.51" / 58.35cm x 44.67cm x 16.54cm
Weight: 23.15 lbs. / 10.5 kg
Media
Description: The StudioLive 32SC is a compact, rack-mountable 32-channel digital mixer that can be quickly and easily scaled for 16-, 24-, and 32-channel applications. Don't let the road-ready size fool you; the StudioLive 32SC sports a dual-core PreSonus FLEX DSP Engine powering 40 mixing channels, 26 mix buses, and 286 simultaneous processors including 4 stereo reverberation systems and Fat Channel plug-in models on every input channel and mix bus.
Q & A
Reviews
Protect your investment with the Long & McQuade Performance Warranty
A warranty can be a very important factor when making a buying decision. Because repairs can be very expensive in terms of parts and labour costs, manufacturers usually only provide one year limited warranties that generally only cover items that malfunction due to a manufacturer’s defect. With an important purchase such as a musical
instrument or piece of studio gear, however, many people want to have the peace of mind in knowing that their investment will be protected should the product no longer be performing at 100%.
Because of this, Long & McQuade provides our customers with a FREE one-year Performance Warranty on most of our products. The Long & McQuade Performance Warranty supplements the manufacturer’s warranty to ensure that our customers receive complete “no hassle” warranty coverage within their first year.
How does the Long & McQuade Performance Warranty differ from most manufacturers' warranties?
- Performance Guarantee: Normal wear and tear is covered, so your product will be performing as well as the day you purchased it for the entire duration of the coverage. Band and Orchestral Performance Warranty does not include replacing pads or cleaning for woodwind instruments, unless deemed necessary by our repair staff. Ultrasonic cleaning for brass instruments will be provided if deemed necessary by our repair staff, but is not routinely offered under the Performance Warranty.
- Product Replacement: If your product cannot be fixed or costs too much to fix, we will replace it with the equivalent model for no additional charge. If this is not possible, a full refund will be provided.
- No Lemon Policy: Your product will be replaced should the same problem occur multiple times.
- Convenient: Easy drop off and pick up of the product at any Long & McQuade location.
- Guitar Setup: Guitars purchased at Long & McQuade come with 1 free setup, to be redeemed within 1 year for new guitars and 90 days for used guitars.
- Loaners Available: A loaner product may be given while the product is being repaired.
- Power Surge Protection: Your product is covered even if damaged from a power surge.
- Accessory Coverage: Any peripheral devices or accessories that come with your product (i.e. foot pedal, case) are also covered.
- Commercial Use Coverage: Music and recording professionals who purchase gear for “heavy-use” commercial purposes will still be covered.
Long & McQuade reserves the right to restrict the purchase of additional years of Performance Warranty. Used products come with a 3-month Long & McQuade Performance Warranty. Some products (i.e. computers, software, cymbals and other items) are covered only by the manufacturer‘s warranty. Consumables (i.e. strings, reeds, drum sticks, batteries, tubes, cross faders) are excluded as they are designed to be replaced. Cosmetic Damage, Accidental Damage, or problems caused by Humidity or Temperature Issues are not covered. Speakers damaged by overpowering are generally not covered. Our coverage does not provide compensation for loss of use. As of June 2018 the Performance Warranty is no longer transferable. The warranty is only valid in Canada.
Purchasing additional years of coverage
Some manufacturers provide warranties for longer than 1 year; however, these are usually limited warranties that do not provide the same coverage as the Long & McQuade Performance Warranty. Customers interested in more complete and convenient (but not necessarily longer) coverage are still able to purchase additional years of the Performance Warranty.
If you are interested in receiving this coverage for longer than one year, you have the option of purchasing additional years of the Performance Warranty. The pricing is as follows:
- NEW products: 4% of the current new selling price to double the warranty from 1 year to 2 years. 4% for each additional year.
- USED products: 4% of the current new selling price to increase the warranty from 3 months to 1 year. 4% for each additional year.
- GUITARS: 4% of the current new selling price to double the warranty from 1 year to 2 years. 4% for each additional year. $45 maximum. An additional free setup is not included with additional purchased years of Performance Warranty.
- BAND and ORCHESTRAL instruments: 4% of the current new selling price to double the warranty from 1 year to 2 years. 4% for each additional year.
