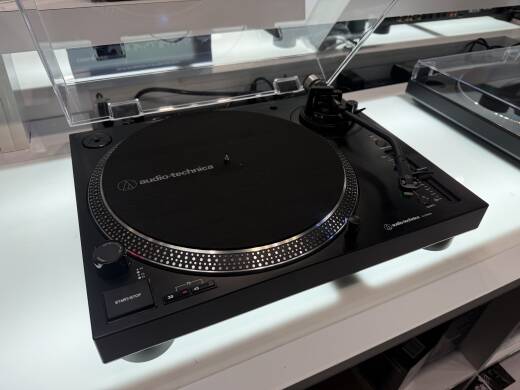

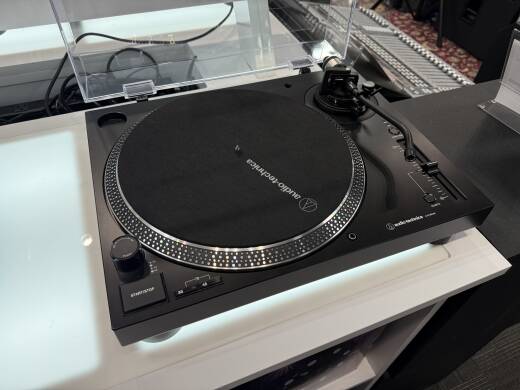

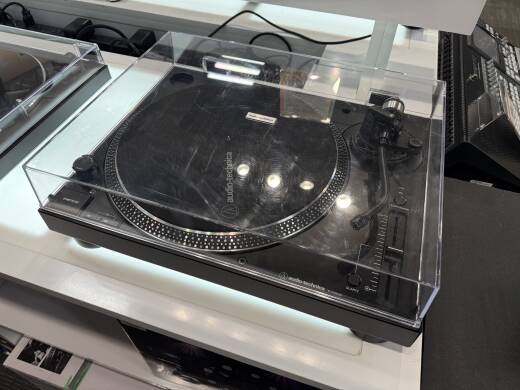

Audio-Technica ATLP120XUSB Direct Drive Quartz Turntable (Analogue & USB) - Black
The turntable features an S-shaped tonearm with adjustable tracking force and an AT-HS6 universal 1/2"-mount headshell with an AT-VM95E Dual Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
Features
• Convert your vinyl records to digital audio files by downloading and using the free Mac- and PC-compatible Audacity recording software (or software of your choice)
• Direct-drive, DC servo motor
• Adjustable dynamic anti-skate control
• Selectable 33/45/78 RPM speeds
• Professional-grade anti-resonance, die-cast aluminum platter with felt mat
• AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
• Balanced S-shaped tonearm with hydraulically damped lift control and lockable rest
• Built-in switchable phono pre-amplifier for phono- or line-level output
• Variable pitch control with quartz speed lock
• Removable plug-type target light for easier cueing in low light
• Damped base construction for reduced low-frequency feedback coloration
Specifications
Type: 3-speed, fully manual operation
Motor: DC servo motor
Drive Method: Direct drive
Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
Turntable Platter: Die-cast aluminum
Starting Torque: > 1.0 kgf.cm
Braking System: Electronic brake
Wow and Flutter: < 0.2% (WTD) @ 3 kHz (JIS)
Signal-to-Noise Ratio: > 50 dB
Output Level:
• Pre-amp "PHONO": 4 mV nominal at 1 kHz, 5 cm/sec
• Pre-amp "LINE": 240 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
USB Function:
• A/D, D/A 16-bit/44.1 kHz or 48 kHz USB selectable;
• Computer interface USB 1.1 Compliant Windows 7 or above, or MAC OS X or above
Power Supply Requirements: 120V AC, 60 Hz
Power Consumption: 2.75 W
Tonearm type: Balanced S-shaped tonearm with detachable headshell
Effective arm length: 230.5 mm
Overhang: 16 mm
Tracking error angle: Less than 3 degrees
Applicable cartridge weight: 3.5-8.5 g
Anti-skating range: 0-4 g
Dimensions: 452.0mm x 352.0mm x 141.6mm (17.80" x 13.86" x 5.57")
Weight: 8 kg (17.6 lbs.), without dust cover
Accessories Included: AT-VM95E phono cartridge; AT-HS6 headshell; 1.9 m (6.2') USB cable; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light
