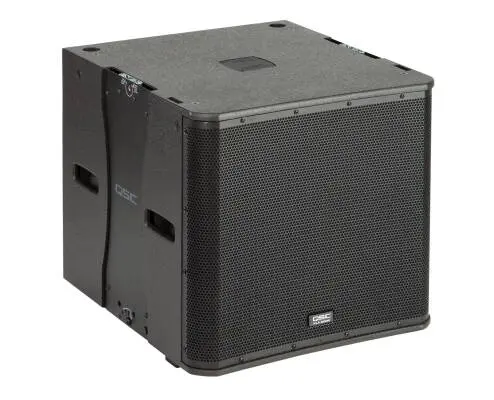

QSC KLA181 1000-Watt 18-inch Active Line Array Subwoofer - Black
Additional Photos:
The KLA Series is comprised of two models: the KLA12 12-inch, 2-way loudspeaker and the KLA181 18-inch subwoofer. The KLA12 features a highly efficient 500 W x 500 W power-amp module in a rugged, lightweight ABS enclosure that can be used in multiple configurations using QSC's unique SOLO™ (Single-Operator Logistics) Rigging System and/or Tilt-Direct™ 35 mm pole socket. The KLA181 offers the same highly efficient power-amp module in a 1,000 W configuration in a birch plywood enclosure.
Features
• 1,000 watt power module
• 18-inch ported subwoofer
• High acoustic output (135 dB SPL peak)
• Frequency range down to 33 Hz (-10 dB)
• Extensive DSP further enhances and protects performance
• powerCON® Input and Thru connections
• Threaded pole receptacle for free-standing applications (black models only)
• Suspension made possible via M10 fittings or KLA12AF Array Frame
• Integrated threaded pole mount supports up to two KLA12 enclosures (black models only)
In the Box
- KLA181 Subwoofer Assembly
- AC powerCON® Power Cord (CEE 7/7), 3.6 Meter
- AC powerCON® Power Cord (NEMA 5-15 - USA style), 12 Foot
- XLR Audio Loop-thru Cable, 3 Foot
- powerCON® Loop-thru Power Cord, 3 Foot
- Hex Key, 6 mm
- Euro-style Connector Plug, 3-pin
Specifications
Configuration: 18-inch subwoofer
Transducers: 18-inch cone transducer
Frequency Response (-6 dB): 38 Hz
Frequency Range (-10 dB): 33 Hz
Nominal Coverage: -
Maximum SPL (1 meter): 135 dB peak
Amplifiers
Power Output: 1000 W Class D continuous
Input Impedance: XLR: 40 kΩ balanced / 20 kΩ unbalanced
Controls: Power, Attenuation, LF Mode (Normal/DEEP™), Polarity (Normal/Reverse), Front LED (Pwr/Limit/Off)
Indicators: Power, Signal, Standby, Limit

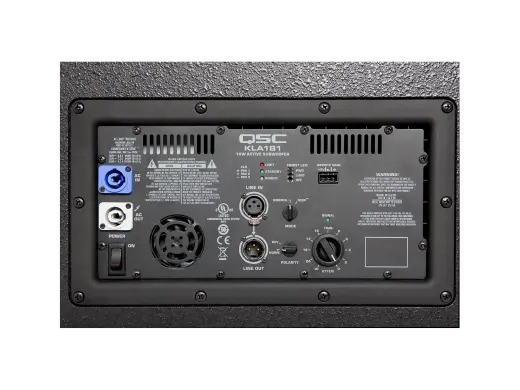

Connectors: Balanced female XLR line level input, Balanced male XLR full range line level out, Remote attenuation control, Locking powerCON power connector AC In, Locking powerCON® power connector AC Out
Cooling: On demand, 50 mm variable speed fan
Amplifier Protection: Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
Transducer Protection: Thermal limiting, excursion limiting
AC Power Input: Universal power supply 100-240 VAC, 50 to 60 Hz
AC Power Consumption (1/8 Power):
- 100 VAC, 2.3 A
- 120 VAC, 2.01 A
- 230 VAC, 1.13 A
Enclosure
Material: Painted birch plywood
Finish: Black or white textured paint
Grille: Black or white powder coated 16 gauge steel
Dimensions (HWD): 21.6 x 23.1 x 25.7 inches (547 x 586 x 633 mm)
Net Weight: 100 lb / 45.3 kg
