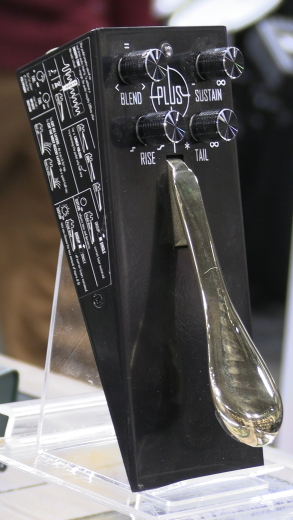

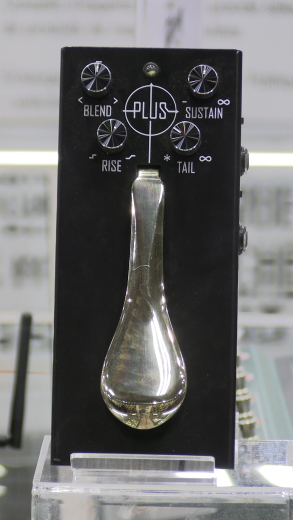

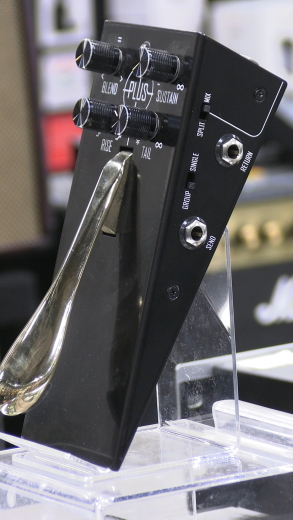

Gamechanger Audio Plus Pedal
Additional Photos:
Product Videos :
The PLUS Pedal is more than just a stomp-box - it is a vast extension of your instrument that bridges the gap between rhythm and lead parts, and lets all musicians explore completely new territories. Besides being a powerful arrangement and compositional tool, The PLUS Pedal can also be used for creating interesting and unique sound effects that would otherwise be impossible to achieve in real-time. Whether you are a composer, solo performer, sound designer or part of a band the ability to instantly turn any melodic sound produced by your instrument into a layer of continuous sound will completely change the way you approach music.
Features
QUALITY & DESIGN - The PLUS Pedal is built like a tank and will last you a lifetime. It is also elegantly designed to fit any setting from an academic stage to the heaviest of pedalboards
PRACTICE TOOL - The PLUS Pedal is also a fantastic tool for aural training and practicing melodies, scales, and modes over specific chords or tonal counterpoints.
SCORING AND SOUND DESIGN - Effortlessly create unique ambient sounds, drones, textures, special effects for film-scores and atmospheric pieces for live-use.
KNOBS! - Tons of adjustable parameters, including volume, fade-in and fade-out speed, tone, number of layers, and a touch-sensitive gradual foot-pedal ensure that you have full control over the PLUS Pedal
FX LOOP - Combine the PLUS Pedal with any other effects unit and choose which output signal to link it with Dry or Wet. For example you can add any tremolo pedal to the Wet signal and give your sustained tones a cool, pulsating effect.
WET FOOTSWITCH - The WET only mode lets you transform your instrument by removing all dry signal and just playing with layers of sustain.
Technical Specifications
Input Type: 1/4" Unbalanced TS
Input Impedance: 1MΩ
Max Input Level: +6.8dBu
Output Type: 1/4" Unbalanced TS
Output Impedance: 100Ω
Max Output Level: +6.8dBu
Max ADC input: -1.8dBu
Max DAC output: +5.2dBu
Sample Rate: 26kHz
A/D D/A Conversion: 16 bit
Frequency Response: 20Hz to 22kHz/13kHz
Signal to Noise Ratio: -97 dB (A weighted); ref = max level, 22 kHz bandwidth
THD: -84 dB, ref= 6dBu, 1kHz
Controls:
• 2-position foot pedal
• Potentiometers: BLEND, SUSTAIN, RISE, TAIL
• Switches: GROUP/SINGLE, SPLIT/MIX, additional footswitch input
Indicator: 3-level check and pedal state indicator
Connectors: IN, CLEAN OUT/FSW, OUT, SEND, RETURN
Power Consumption: 1.8W
Power Requirements: 200mA, 9VDC, center negative 2.1 x 5.5 mm plug
PLUS PEDAL Dimensions (WxDxH) 90 x 195 x 72 mm (3.55 x 7.7 x 2.8 in)
PLUS PEDAL Weight 1020 g (2.25 lbs)
Dimensions (WxDxH): 90 x 195 x 72 mm (3.55 x 7.7 x 2.8 in)
Weight: 1020 g (2.25 lbs)
