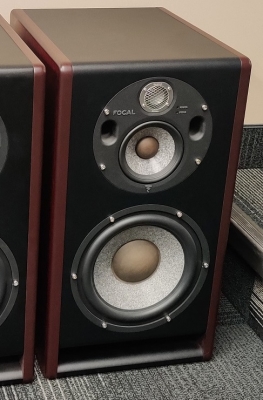

Focal Professional Trio11 Be 300W+150W+100W 3-Way Active 10''/5''/1'' Monitor (Single)
Additional Photos:
The Trio11 Be double monitor meets the needs of the most demanding sound engineers, designed for nearfield and midfield applications. Its extreme neutrality, the precision of the stereo image and its ability to reproduce the tiniest details of sound are the answer to the most picky engineers. In the same way, the class G amplification used on the midrange and the subwoofer enable extremely high SPLs to be reached to meet the needs of modern music.
As well as new speaker drivers (a 5" midrange and a 10" subwoofer) with high efficiency and power handling, the Trio11 Be monitor enjoys all of Focal's very latest technologies when it comes to acoustics and electronics: TMD and NIC technologies; optimised vents that promote dynamic control and perfect bass definition; high excursion, enabling even more linearity of the subwoofer and more.
Thanks to its class G amplification, Trio11 Be delivers a high SPL (118dB at 1m) and offers a great versatility of use and installation configurations in nearfield AND midfield applications. A key asset, always coming along with an extremely precise sound reproduction and stereo image.
With an extended bandwidth (30 Hz-40 kHz), this loudspeaker is also composed of a 3-way monitor and a 2-way monitor, just like Trio6 Be, which lets you check the mix transfer sound quality thanks to FOCUS mode. The 3-way monitor provides a flawless control of the entire audio spectrum (30 Hz 40 kHz). The 2-way monitor, with a frequency response of 90 Hz to 20 kHz, makes it possible to check the transfer quality of mixes on systems with a limited frequency response in the bass (televisions, computers, cars, etc.).
Trio11 Be has two side panels in a natural dark red burr ash veneer and a black central body, for an aesthetic rendering that is also discreet and hard-wearing.
With Trio11 Be, power and versatility are waiting for you!
KEY POINTS
• High SPL: 118 dB @ 39-3/8" (1m)
• FOCUS Mode: two monitors in one with remote switchover
• Pure Beryllium inverted dome tweeter: very low directivity, linearity, dynamics
• 'W' composite sandwich cone on midrange and subwoofer: neutral sound, no distortion
• Bass, mid-bass and treble settings on rear panel: optimum acoustical integration
• Optimised decoupling of the midrange speaker driver thanks to silent blocks
• Ultra-low distortion and noise
Specs
Performance
Frequency Response:
3-way mode: 30Hz - 40kHz (+/- 3dB)
2-way mode (Focus): 90Hz - 20kHz (+/- 3dB)
Maximum SPL:
3-way mode: 118dB (peak @ 1m)
2-way mode (Focus): 105dB (peak @ 1m)
Electronics
Input type: Electronically balanced / 10Kohms
Input connectors: XLR
Sensitivity: Adaptable, +4 dBu or -10 dBv
Bass: 300W, class G
Midrange: 150W, class G
Treble: 100W, class AB
Power supply
Mains voltage: 230V (class T fuse 1.6A fuse rating) - 115V (class T fuse 3.5 A fuse rating)
Wiring: Detachable IEC power cable

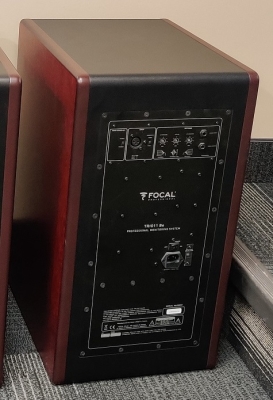

Indicators and controls (Rear panel):
• Input sensitivity selector (+4dBu/-10dBV)
• Low frequency shelving (+/- 3dB from 35 to 250Hz)
• High frequency shelving (+/- 3dB from 4.5 to 40kHz)
• EQ low-mid frequencies (+/- 3dB at 160Hz, Q factor = 1)
• FOCUS input / FOCUS output
LED: Focus mode on, audio clipping and protection indicated by LED on front panel
Transducers
• Subwoofer: 10W96701D, 10-inch Focal driver with W composite sandwich cone
• Woofer: 5W04701, 5-inch Focal driver with W composite sandwich cone
• Tweeter: TB872, 1-inch Focal pure Beryllium inverted dome tweeter
Cabinet
Structure: 21mm (0.82") and 30mm (1.2") reinforced panels
Dimensions, including 4 rubber feet (HxWxD): 25" x 13.6" x 17.7" (635 x 345 x 450mm)
Weight: 82.2 lbs (37.3 kg)
