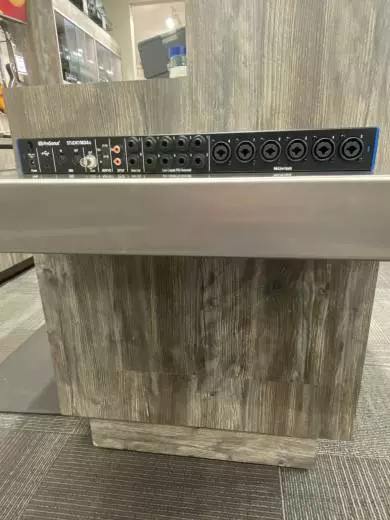

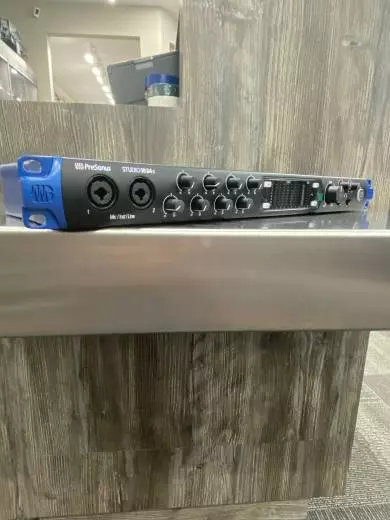

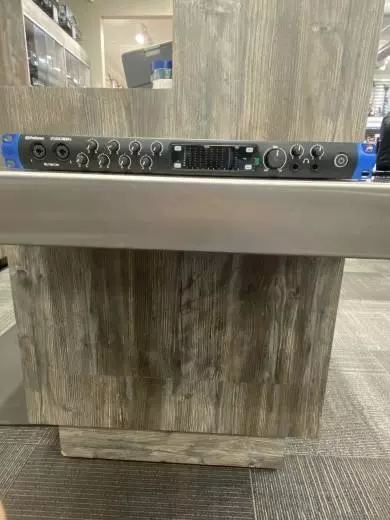

PreSonus Studio 1824c 18-inx24-out 192kHz USB-C Audio Interface
Additional Photos:
The full-featured, ultra-high-def, USB-C audio interface.
The Studio 1824c 192 kHz USB-C audio interface is ideal for producers interested in recording full bands, including multi-channel drums. It records up to 18 simultaneous inputs and features 8 XMAX Class A mic preamps, as well as MIDI I/O. Its 20 outputs offer flexible routing with zero-latency DSP-based monitor mixing and control-room integration with included Studio One Artist music production software and UC Surface control software.
The Studio 1824c audio interface features USB-C computer connectivity and records up to 18 simultaneous inputs, including two combo mic and switchable line/instrument inputs and six mic/line inputs, all with XMAX mic preamps and +48V phantom power. Digital inputs include eight channels of ADAT Optical I/O (four channels at 96 kHz) and stereo S/PDIF I/O. In addition to the main L/R outputs, you get eight DC-coupled line-level outputs that can send control voltages. You also get two headphone outputs. A built-in MIDI interface enables connection to a keyboard, sound module, or control surface.
FEATURES
Input/Output
• Up to 18 inputs/20 outputs simultaneously (8x8 at 192 kHz)
• 2 mic/instrument/line inputs with XMAX Class A mic preamps
• 6 mic/line inputs with XMAX Class A mic preamps
• 8 channels of ADAT Optical I/O (4 channels at 96 kHz)
• 2 balanced 1/4" TRS main outputs
• 8 balanced 1/4" TRS line outputs for monitor mixing
• 2 stereo headphone outputs with individual level controls
• MIDI In/Out
• Stereo S/PDIF digital I/O
• 1 USB-C 2.0 port
• BNC word clock output
Integrated Software
• Studio One Artist for Mac and Windows
• UC Surface control software for Mac, Windows, iPad, and Android
• Studio Magic Plug-in Suite
Meters, Controls, and Features
• 18x8 onboard DSP monitor mixer
• Front-panel level controls for main outputs
• Mono and Mute buttons for the main outputs
• True +48V phantom power for condenser microphones (global)
• 10 ladder-style 8-LED level meters (8 input, 2 main output)
Digital
• USB-C port (USB 2.0)
• 24-bit resolution
• 44.1, 48, 88.2, 96, 176.4, and 192 kHz sampling rates
Physical
• 1U rack-mountable
• Road-rugged construction with all-metal chassis and metal knobs
• Weight: 2.2 kg (4.8 lbs)
• Dimensions (H x W x D): 44 mm x 483 mm x 140 mm (1.75" x 19"x 5.5")
