Allen & Heath SQ-7 33 Fader 48-channel Digital Mixer
Additional Photos:
Product Videos :
48 channel, 36 Bus, 96kHz digital mixer for live sound, AV and installation
SQ-7 is the 33-fader flagship console in the SQ series, powered by Allen & Heath's revolutionary 96kHz XCVI FPGA engine. Created to excel in demanding scenarios such as AV, corporate events, live productions and houses of worship, SQ-7 offers pristine high-resolution audio quality and an ultra-low latency of < 0.7ms. The console features 32 exceptional onboard mic preamps, plus 8 stereo FX engines with dedicated stereo return channels and access to the renowned RackExtra FX library. SQ is a natural choice for in-ear monitor setups, providing 12 stereo mixes (configurable as groups or auxes), while Automatic Mic Mixing makes it an excellent choice for conferences, panel talks and more.
Powerful Processing
SQ comes equipped with all the processing you need to craft the perfect mix. Every one of the 48 inputs has HPF, a super-fast gate with sidechain and filter, a musical 4-band parametric equaliser, and Peak/RMS compressor for control and shaping of levels and transients. Mixes have both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required. The XCVI core even allows for every compressor in SQ to have its own parallel path, without phase or coherency worries.
RackExtra FX
SQ is armed with 8 stereo FX engines and comes complete with the acclaimed RackExtra library, featuring emulations of legendary classic reverbs, gated reverbs, delays, modulators and more. Every engine has its own dedicated stereo return too, so you don't need to use up any of your 48 input channels.
Expandable up to 48 mics
SQ has all the onboard I/O you need for standalone operation. Thanks to its SLink intelligent port, SQ can also be expanded up to a total of 48 mic inputs via a family of 96kHz and 48kHz rack and stage box expanders (e.g. AB168, AR2412, AR84 and DX168), making it a flexible, mix n match solution for owners of other Allen & Heath digital systems. You can also link your SQ directly to another SQ or even a dLive system.
Dante, Waves and more
SQ is the centrepiece of a growing ecosystem of apps, expanders, audio networking, personal mixers and more, allowing you to connect, adapt and expand to your heart's content. It's compatible with leading audio networking standards too - add an audio networking card such as Dante or Waves to SQs I/O port and you're ready to integrate with installed systems, provide a digital FoH / Monitor split and more.
Advanced AMM
SQ's advanced automatic mic mixers (AMMs) make it a natural choice for mixing conferences, panel talks and TV shows. They're fully integrated in the mixer too, with no extra latency, so you don't need to route the audio to an internal DSP rack or an external plugin system. Two fully independent 24 channel AMM's can be utilised for two zones or combined into a single 48 channel AMM for larger events.
Flexible multitrack recording
The integrated SQ-Drive makes it quick and easy to capture a 96kHz multitrack or stereo recording of the show direct to a USB key or drive. No software setup, no soundcard driver issues and no extra laptop to bring to the performance. SQ-Drive is also a smart way to manage walk-in music.
Also provided is a built-in 3232 96kHz audio interface for multitrack recording, backing tracks or virtual soundcheck applications. The interface is Core Audio and ASIOTM compliant and comes complete with MIDI and DAW control capabilities.
Features
• 96kHz FPGA processing
• 48 Input Channels
• DEEP Processing ready
• 33 Faders / 6 Layers
• 12 Stereo mixes + LR
• 3 Stereo Matrix
• 8 Stereo FX Engines + dedicated stereo returns
• 7" capacitive touchscreen
• SLink port for remote audio / expansion
• 64ch I/O Port for audio networking
• 3232 USB audio interface
• SQ-Drive direct recording to USB
• AES output
• Chromatic channel metering
• Integrated LED illumination
• Dedicated physical controls
• 16 Assignable SoftKeys
• 8 Assignable Soft Rotaries
• Channel LCD displays
• Dimensions (Width x D x H) - 804 x 514.9 x 198.5mm/31.7" x 20.3" x 7.8"
• Weight - 17.8kg/39.3lbs
*iPad sold separately.
Media

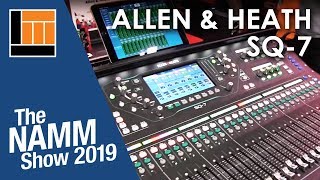

Description: Nic from Allen & Heath shows the new SQ-7 33 fader / 32 mic preamp digital mixer and its expansion cards at NAMM 2019.
