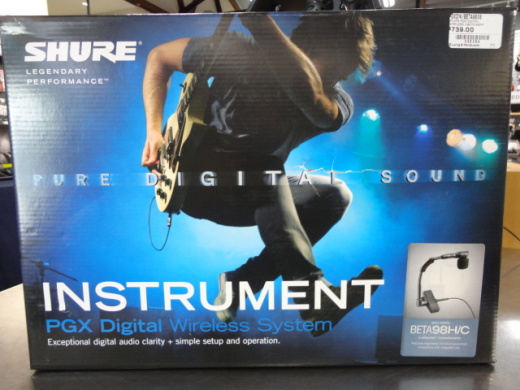

Shure PGXD14/Beta98H - Wireless Instrument Mic for Horns/Percussion
Additional Photos:
Product Videos :
The Beta 98H/C is a premium cardioid condenser instrument microphone that clamps onto the bell of wind instruments or onto the rim of percussion instruments. The integrated gooseneck and ratcheting swivel joint allows the mic to be easily positioned and secured, and an isolation shockmount reduces the transmission of instrument 'key noise' and other mechanical noise. A gooseneck angle brace is included to provide better retention of the microphone placement during more active performances.
The rugged PGXD1 bodypack transmitter easily clips onto a belt or guitar strap, and provides you with a 20Hz - 20kHz frequency range, up to 10 hours of continuous use on 2 standard AA batteries (not included), and 200' of wireless freedom. The PGXD4 receiver offers 24-bit/48kHz accurate sound, offers technology for incredibly accurate sound, auto frequency selection, and greater reliability thanks to its true digital diversity.
Features:
PGXD1 Bodypack transmitter
• Rugged, compact bodypack with belt clip
• 20Hz to 20kHz frequency range captures every nuance of your tone
• Power, mute, and battery status LED
• Up to 10 hours of continuous use from 2 AA batteries
• 200' (60m) operating range
• 26dB of continuously adjustable gain to match variable input levels
PGXD4 Wireless Receiver
• 24-bit / 48kHz digital technology for incredibly accurate sound
• Automatic frequency selection locates a clear channel instantly
• One-touch sync automatically syncs the transmitter and receiver
• True digital diversity delivers rock-solid wireless signal reliability
• Up to 5 systems can be used at once
• 1/4" and XLR audio outputs
Specifications:
PGXD1 transmitter
Audio input level: +10 dBV maximum, at minimum gain setting -16 dBV maximum, at maximum gain
Gain adjustment range: 26dB
Input impedance: 1M
RF Output Level: 10 mW maximum (dependent on applicable country regulations)
Dimensions (HxWxD): 108mm x 64mm x 19mm (4.25" x 2.50" x 0.75")
Weight: 128g (4.5oz.) without batteries
Housing: Molded polycarbonate case
Battery Life: Up to 10 hours
PGXD4 receiver
Dimensions (HxWxD): 40mm x 181mm x 104mm (1.6" x 7.125" x 4.1")
Weight: 289g (10.2oz.)
Housing: ABS
Audio Output Level (ref. 38kHz deviation, 1kHz tone): XLR connector (into 3000 load): -2.5dBV 1/4" connector (into 10000 load): +10 dBV
Impedance:
XLR: 50Ω
1/4": 50Ω
Sensitivity: -102 dBm @ 10-5 BER
Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
