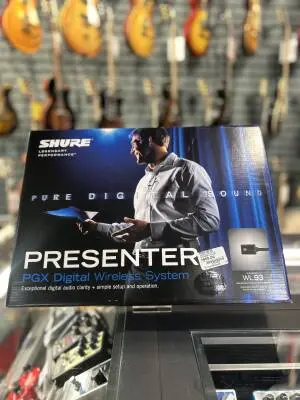

Shure PGXD14/93 - Wireless Lavalier System
Additional Photos:
Product Videos :
The rugged PGXD1 bodypack transmitter easily clips onto a belt or guitar strap, and provides you with a 20Hz - 20kHz frequency range, up to 10 hours of continuous use on 2 standard AA batteries (not included), and 200' of wireless freedom.
The PGXD4 receiver offers 24-bit/48kHz accurate sound, offers technology for incredibly accurate sound, auto frequency selection, and greater reliability thanks to its true digital diversity.
The WL93 Lavalier Microphone is an omnidirectional lavalier condenser microphone designed for general speech applications where a visually unobtrusive microphone is desirable. It comes with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications. It also includes a cable terminated with a TQG connector which connects directly to the PGXD1.
Features:
PGXD1 Bodypack transmitter
• Rugged, compact bodypack with belt clip
• 20Hz to 20kHz frequency range captures every nuance of your tone
• Power, mute, and battery status LED
• Up to 10 hours of continuous use from 2 AA batteries
• 200' (60m) operating range
• 26dB of continuously adjustable gain to match variable input levels
PGXD4 Wireless Receiver
• 24-bit / 48kHz digital technology for incredibly accurate sound
• Automatic frequency selection locates a clear channel instantly
• One-touch sync automatically syncs the transmitter and receiver
• True digital diversity delivers rock-solid wireless signal reliability
• Up to 5 systems can be used at once
• 1/4" and XLR audio outputs
Specifications:
PGXD1 transmitter
Audio input level: +10 dBV maximum, at minimum gain setting -16 dBV maximum, at maximum gain
Gain adjustment range: 26dB
Input impedance: 1M
RF Output Level: 10 mW maximum (dependent on applicable country regulations)
Dimensions (HxWxD): 108mm x 64mm x 19mm (4.25" x 2.50" x 0.75")
Weight: 128g (4.5oz.) without batteries
Housing: Molded polycarbonate case
Battery Life: Up to 10 hours
PGXD4 receiver
Dimensions (HxWxD): 40mm x 181mm x 104mm (1.6" x 7.125" x 4.1")
Weight: 289g (10.2oz.)
Housing: ABS
Audio Output Level (ref. 38kHz deviation, 1kHz tone): XLR connector (into 3000 load): -2.5dBV 1/4" connector (into 10000 load): +10 dBV
Impedance:
XLR: 50Ω
1/4": 50Ω
Sensitivity: -102 dBm @ 10-5 BER
Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
