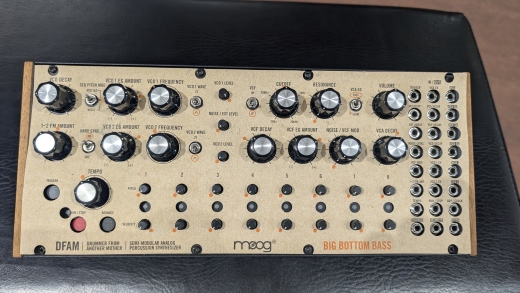

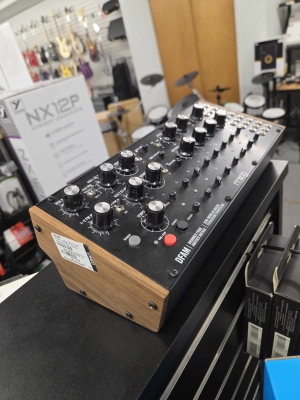

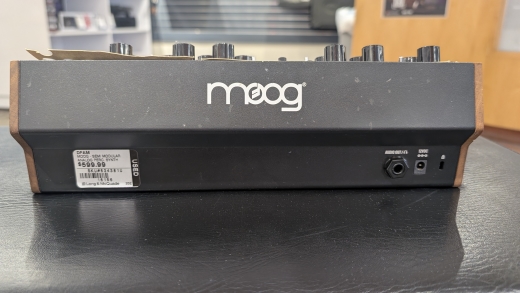

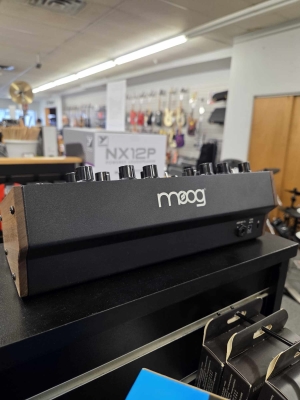

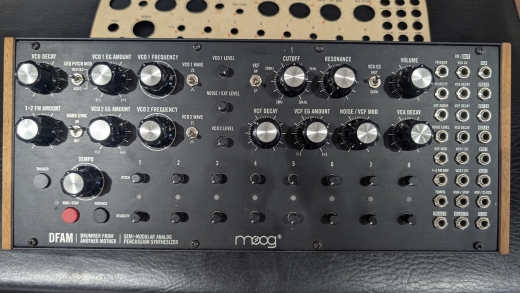

Moog DFAM (Drummer From Another Mother) Semi Modular Analog Percussion Synthesizer
Additional Photos:
Product Videos :
Activated by an easy-to-use analog sequencer, DFAMs emotive sound begins with a white noise generator and two wide-range analog oscillators - effortlessly transitioning between rhythmic pulsations, resounding bass and resonant bells in an instant. DFAMs distinctive voice is then shaped by a classic Moog Ladder filter with two selectable modes: Low Pass mode imparts impact and dimension to each sound it touches, while High Pass mode opens the door to naturally expressive strikes, spikes and clangorous accentuations.
DFAM behaves much like a living organism, reacting in different ways to different individuals. 3 dedicated analog envelopes work dynamically with the sequencer to ensure that tribal toms breathe, industrial impacts evolve, and sonic chaos can be created or subdued at the turn of a knob.
Each DFAM ships with a package of Moog patch cables that unlock access to the 24-point modular patchbay. Use it to create new sounds or bizarre behaviors, synchronize an unlimited number of DFAM and Mother-32 units together, or fully integrate your analog instrument into a modular Eurorack production environment.
SPECS
SOUND ENGINE: Analog
ANALOG SEQUENCER: 8-Steps With Pitch and Velocity Per-Step
SEQUENCER PANEL CONTROLS: Tempo, Run/Stop, Trigger, Advance
SOUND SOURCES: 2 Oscillators With Square and Triangle Waveforms, 1 White Noise Generator, 1 External Audio Input
FREQUENCY CONTROL: +/- 5 Octaves (10 Octave Range)
MIXER: Level controls for Oscillator 1, Oscillator 2 and White Noise/External Audio Input
FILTER: 20Hz-20KHz Switchable Low Pass / High Pass 4-Pole Transistor Ladder Filter
ENVELOPES: VCO EG w/ Voltage Controlled Decay and Bipolar Amount Control, VCF EG w/ Voltage Controlled Decay and Bipolar Amount Control, VCA EG w/ Voltage Controlled Decay and Selectable Fast/Slow Attack Time
PATCHBAY: 24x 3.5mm Jacks
PATCHBAY INPUTS: Trigger, VCA CV, Velocity, VCA Decay, External Audio, VCF Decay, Noise Level, VCO Decay, VCF Mod, VCO 1 CV, 1→ 2 FM Amount, VCO 2 CV, Tempo, Run/Stop, Advance/Clock.
PATCHBAY OUTPUTS: VCA, VCA EG, VCF EG, VCO EG, VCO 1, VCO 2, Trigger, Velocity, Pitch.
AUDIO OUTPUT: 1/4" TS Line / 1/4" TRS Headphones (Shared Output Jack)
INCLUDED POWER SUPPLY: 100-240VAC; 50-60Hz, +12VDC 1200mA
POWER CONSUMPTION: 3.0W
EURORACK CURRENT DRAW: 230mA (+12V from 10-pin header)
EURORACK MOUNTING DIMENSIONS: 60HP (1"/26mm Module Depth)
WEIGHT: 3.5 lbs
DIMENSIONS: 12.57"W x 4.21"H (with knobs) x 5.24"D
